VSR48060 – 30kW CG Solar VFD for Large Pumps & Farms

CG Emotron VSR48060 – 30kW Solar Variable Frequency Drive for Farm Water Pumps

☀️ 30kW CG Solar Inverter for Demanding Pumping Operations

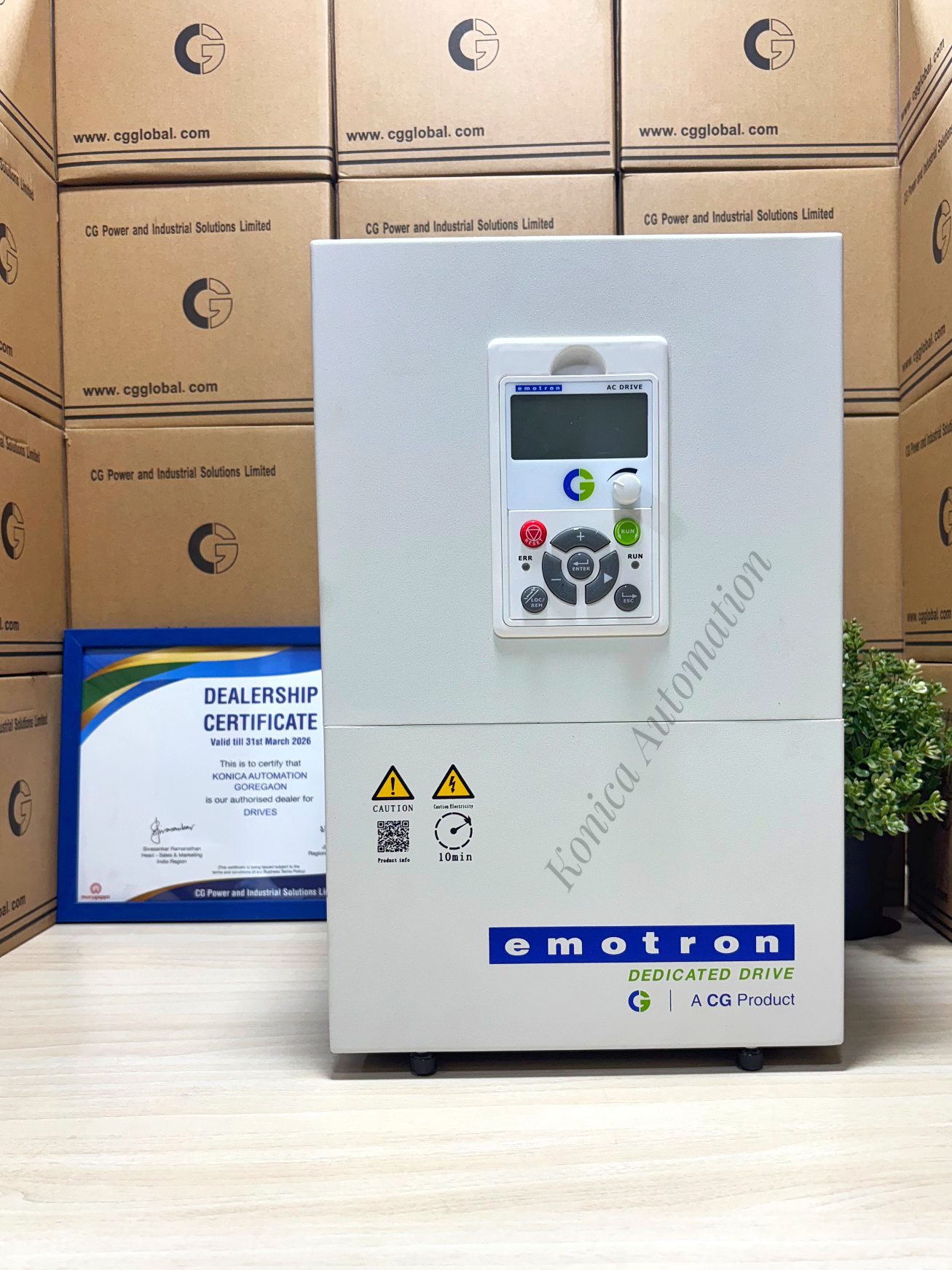

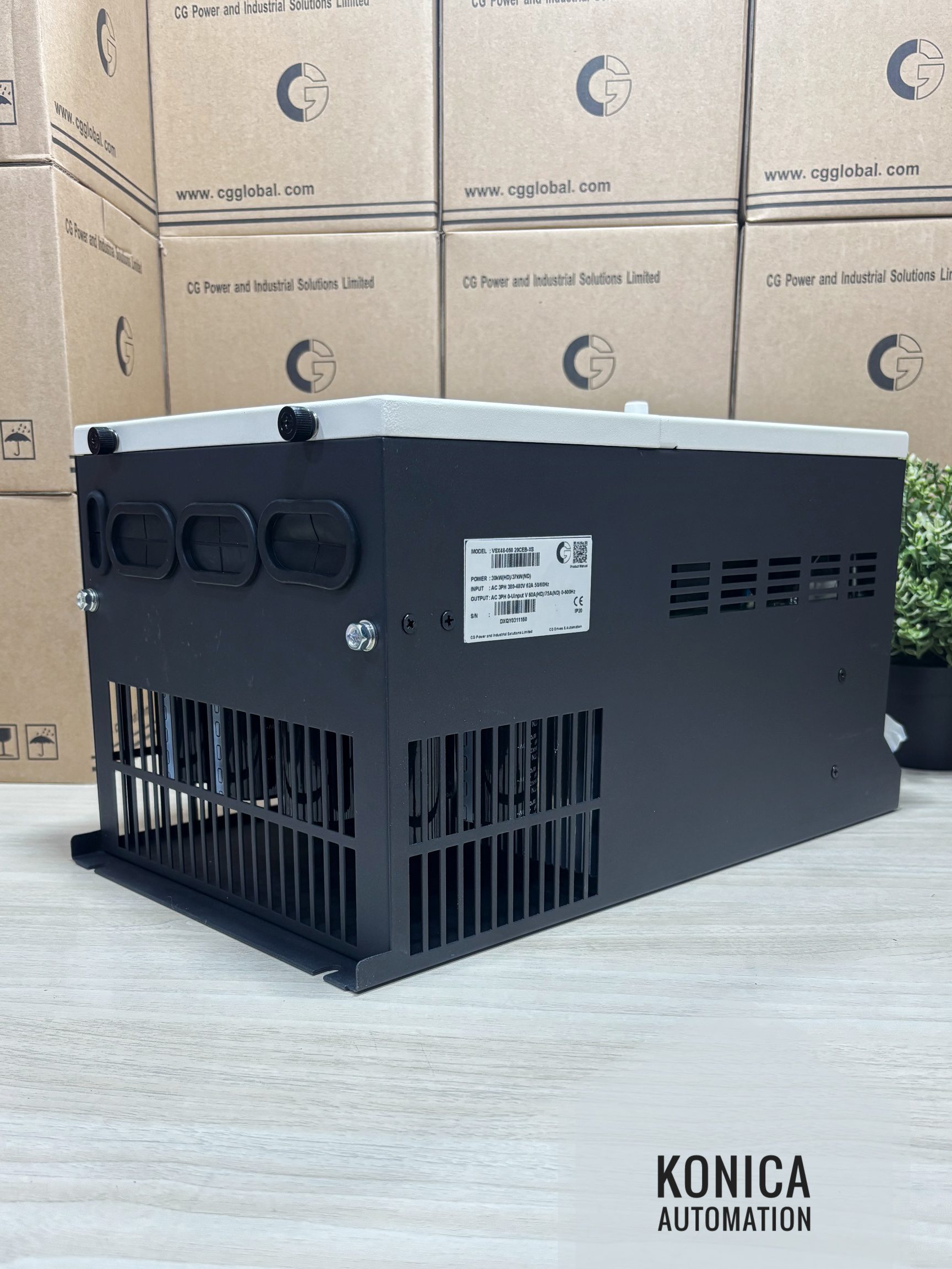

The CG Emotron VSR48060 is a 30kW solar pump inverter designed for high-performance water pumping in commercial farming, deep borewells, and large-scale irrigation systems. With 99% MPPT efficiency, it maximizes solar energy capture and delivers smooth motor operation.

Equipped for hybrid AC/DC use, advanced protection, and rugged build quality, it’s built to perform reliably in the most demanding field conditions.

⚙️ Technical Specifications:

• 🔧 Motor Power: 30.0 kW

• ☀️ Recommended Solar Array: 42–45 kWp

• 🔌 Max DC Input Current: 80 A

• 🔌 Output Current: 60 A

• 📐 Dimensions (mm): 256 x 186 x 195

• ⚖️ Weight: 8.5 kg

⚡ Input & MPPT Control:

• 🌞 DC Input Voltage Range: 230–800 VDC

• 🌞 MPPT Operating Range: 450–600 VDC

• 📈 Recommended Voc: 600–700 VDC

• 🌟 MPPT Efficiency: 99%

🌟 Key Features:

✅ 99% MPPT – Ensures efficient solar power use
✅ 200% Overload – Handles motor stress at peak loads
✅ Dual Input – Compatible with both AC and DC
✅ Smart Sleep/Wake – Operates intelligently with sunlight
✅ Full Motor Protections – Covers all critical fault conditions
✅ LCD Interface – Real-time monitoring & diagnostics
✅ RS485 Modbus – Enables remote integration
✅ Industrial Design – Rugged and climate-resistant housing

🌍 Best Applications:

• 🌾 High-Volume Agriculture Irrigation

• 🚰 Deep Borewells & Tube Wells

• 🐄 Livestock and Rural Water Distribution

• 🏞️ Solar-Based Water Infrastructure Projects

🛠️ Why Choose VSR48060?

The CG VSR48060 offers unmatched power, efficiency, and reliability for large-scale solar water pumping. Trusted in commercial farms and remote installations across demanding terrains.
