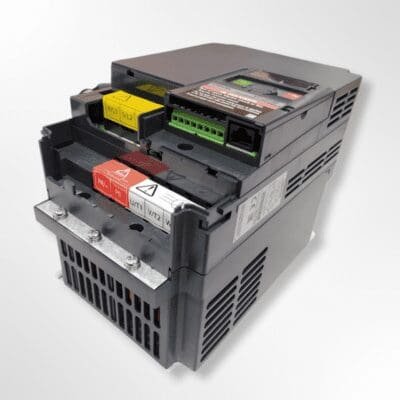

Toshiba VFNC3E-4007P – 1 HP / 0.75 kW Variable Frequency Drive

🔌 Toshiba VFNC3E-4007P – 1 HP / 0.75 kW Variable Frequency Drive 🔌

The Toshiba VFNC3E-4007P is a compact 1 HP (0.75 kW) Variable Frequency Drive (VFD) that combines ease of use, durability, and smart control in a rugged IP20-rated body. As part of Toshiba’s TOSVERT VF-nC3E Series, this drive is engineered for general-purpose applications where space-saving, intuitive control, and global compatibility are essential.

📐 Technical Specifications:

• ✅ Brand: Toshiba

• ✅ Model: VFNC3E-4007P

• ✅ Series: VF-nC3E

• ✅ Power Output: 0.75 kW / 1 HP (Heavy Duty)

• ✅ Output Current: 2.3 Amps

• ✅ Input/Output Phase: 3 Phase Input / 3 Phase Output

• ✅ Enclosure Protection: IP20

• ✅ Drive Type: General Purpose AC Drive

• ✅ Weight: 1 kg

• ✅ Warranty: 1 Year

🌟 Key Features:

✅ Simple & Intuitive Operation

• Large front dial for speed control and easy parameter adjustment

• Quick operation with built-in RUN and STOP buttons

• EASY Mode: Access 24 frequently used parameters with one button

• Standard Mode: Full access to all advanced settings

✅ Efficient Installation

• Compact size and side-by-side mountability reduce panel space

• Removable terminal cover adds safety and flexibility during wiring

✅ Reliable & Rugged Design

• Components rated for up to 10 years of continuous operation

• Operates in extreme conditions from -10°C to +60°C

• Strengthened PCB coating and cooling system for dust resistance

• Altitude support up to 3,000 meters

🏭 Ideal Applications:

Engineered for performance across multiple industries:

• 🌀 Ventilation Fans

• 💧 Water & Chemical Pumps

• 🏗️ Conveyors & Hoists

• 🍝 Food & Beverage Equipment

• 🚗 Car Wash Systems

• 📦 Packing & Material Handling Machines

🌍 Global Certifications:

• ✔️ CE Compliant

• ✔️ UL Certified

• ✔️ CSA Approved
