☀️ Powerful 22kW CG Solar Inverter for High-Volume Pumping

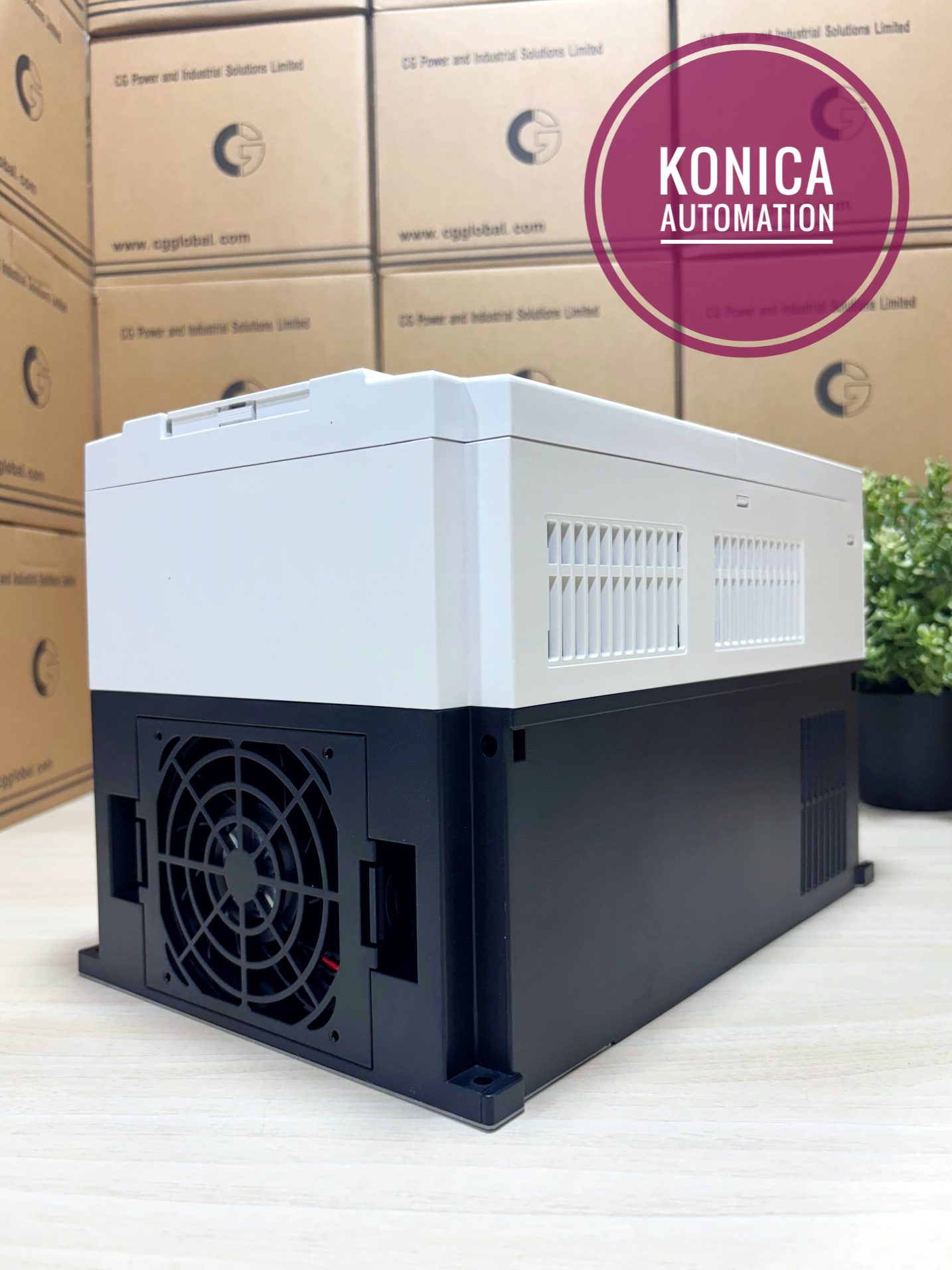

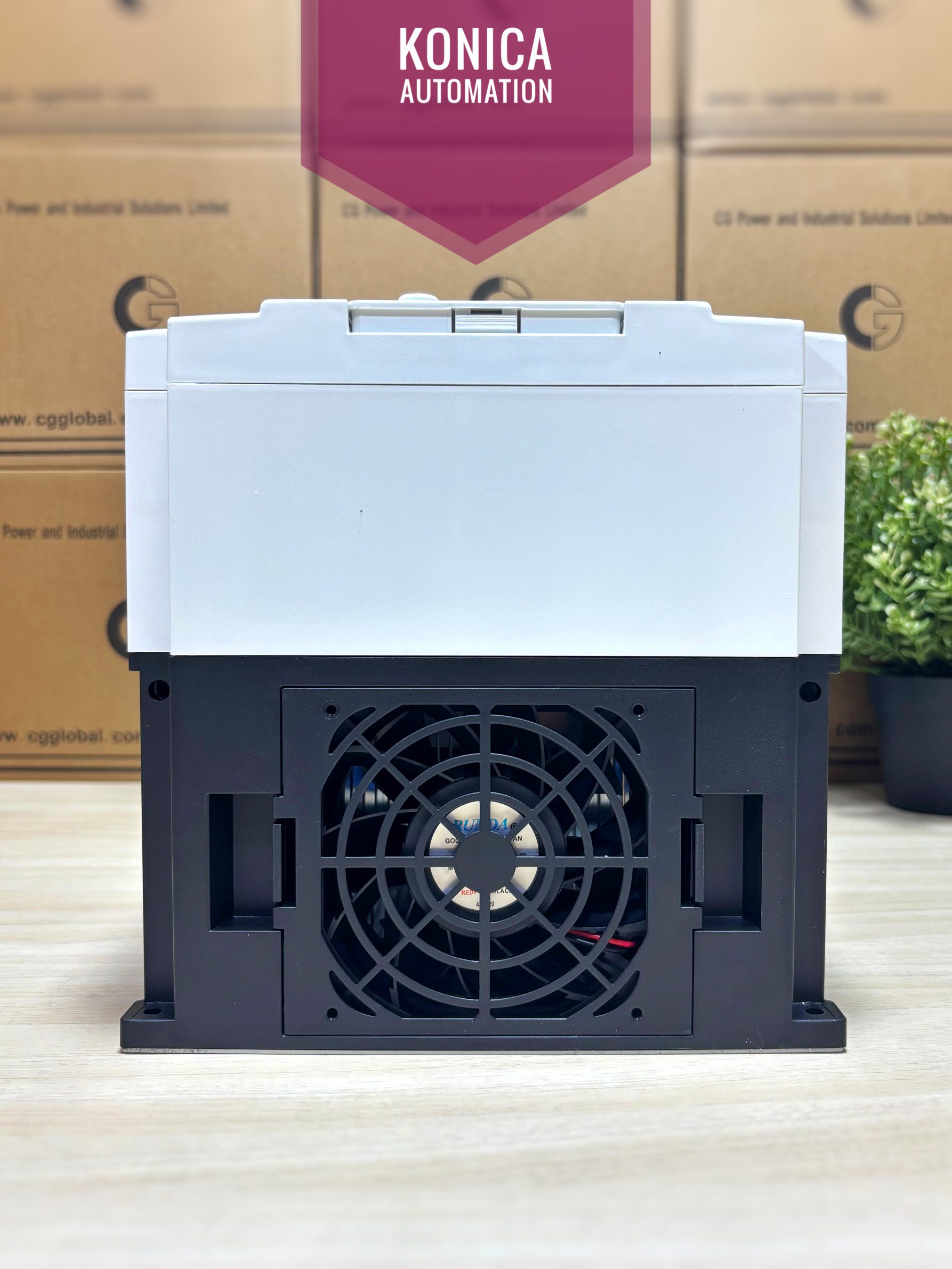

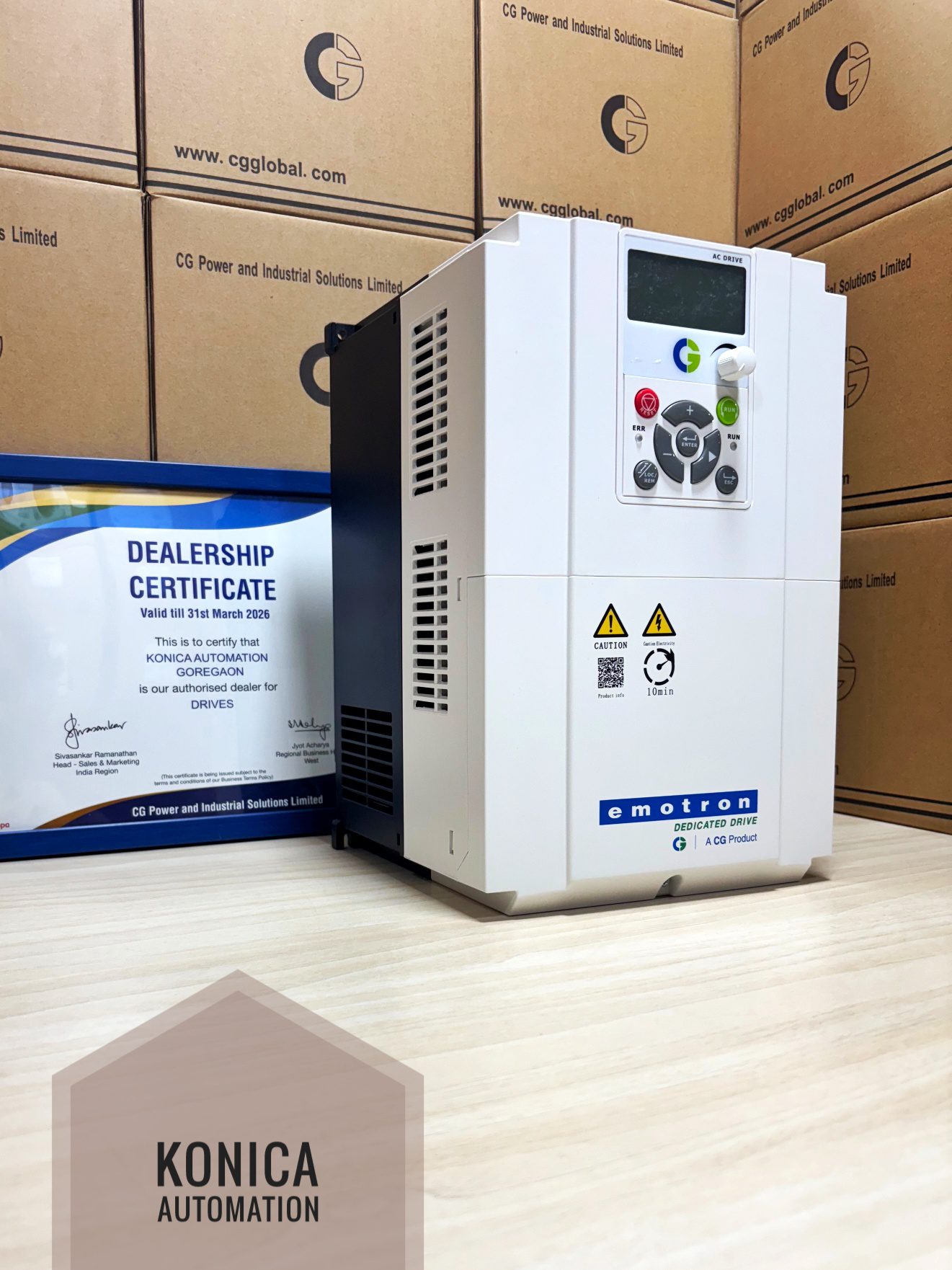

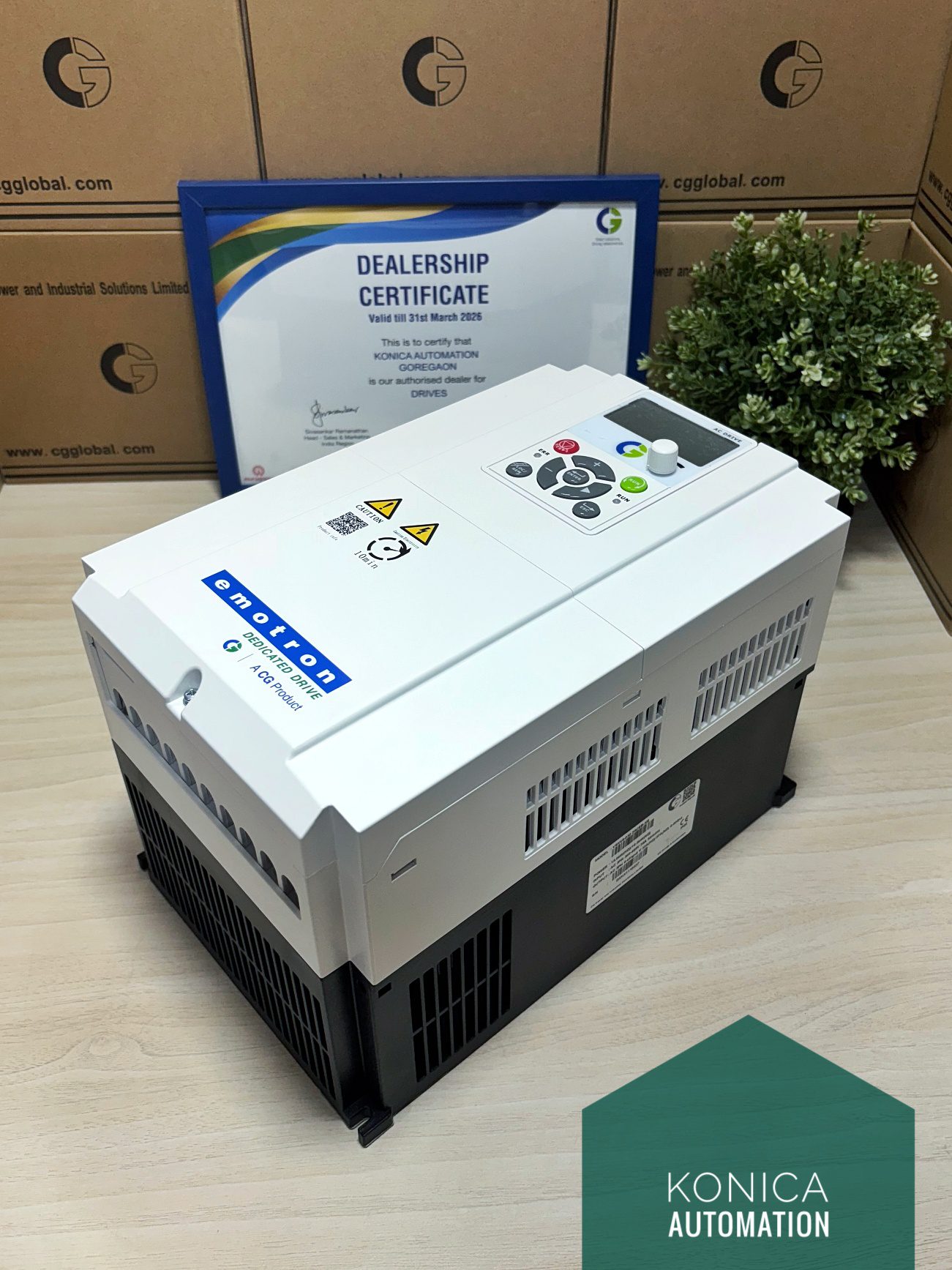

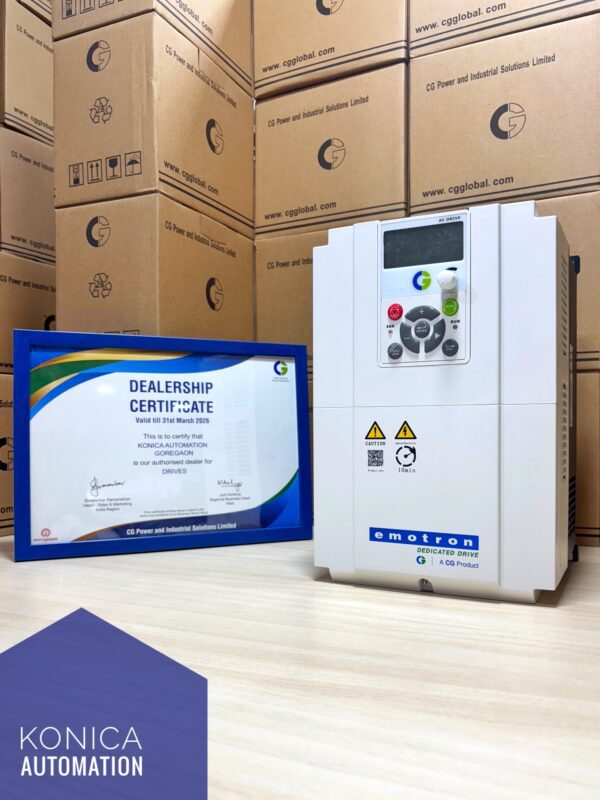

The CG Emotron VSR48045 is a 22kW solar pump inverter built to handle high-demand agricultural and rural water pumping. With 99% MPPT efficiency, this VFD ensures optimal solar energy utilization, even under variable sunlight.
Designed for rugged environments, it supports both AC and DC inputs and offers comprehensive motor protection and smart automation features.
⚙️ Technical Specifications:
-
🔧 Motor Power: 22.0 kW
-
☀️ Recommended Solar Array: 30–31 kWp
-
🔌 Max DC Input Current: 70 A
-
🔌 Output Current: 45 A
-
📐 Dimensions (mm): 256 x 186 x 195
-
⚖️ Weight: 7.2 kg
⚡ Input & MPPT Control:
-
🌞 DC Input Voltage Range: 230–800 VDC
-
🌞 MPPT Operating Range: 450–600 VDC
-
📈 Recommended Voc: 600–700 VDC
-
🌟 MPPT Efficiency: 99%
🌟 Key Features:
✅ High MPPT Efficiency – Converts max solar energy into output
✅ 200% Overload Capability – Handles tough motor loads
✅ AC & DC Input – Enables hybrid solar/grid use
✅ Auto Sleep & Wake – Intelligent light-based operation
✅ Full Motor Protection – Dry run, stall, thermal, overload
✅ LCD Display – Advanced oscilloscope-style interface
✅ RS485 Modbus – Supports remote control/monitoring
✅ Rugged Build – Dust, heat, and moisture resistant
🌍 Best Applications:
-
🌾 Large-Scale Agricultural Irrigation
-
🚜 Commercial Farm Watering Systems
-
💧 Deep Borewells and Remote Water Supply
-
🐄 Livestock Hydration Infrastructure
🛠️ Why Choose VSR48045?
The CG VSR48045 delivers unmatched durability, power handling, and energy efficiency, making it a top-tier solution for large off-grid solar water pumping setups in harsh environments.
