☀️ Rugged Solar Pump Drive for Reliable Water Supply

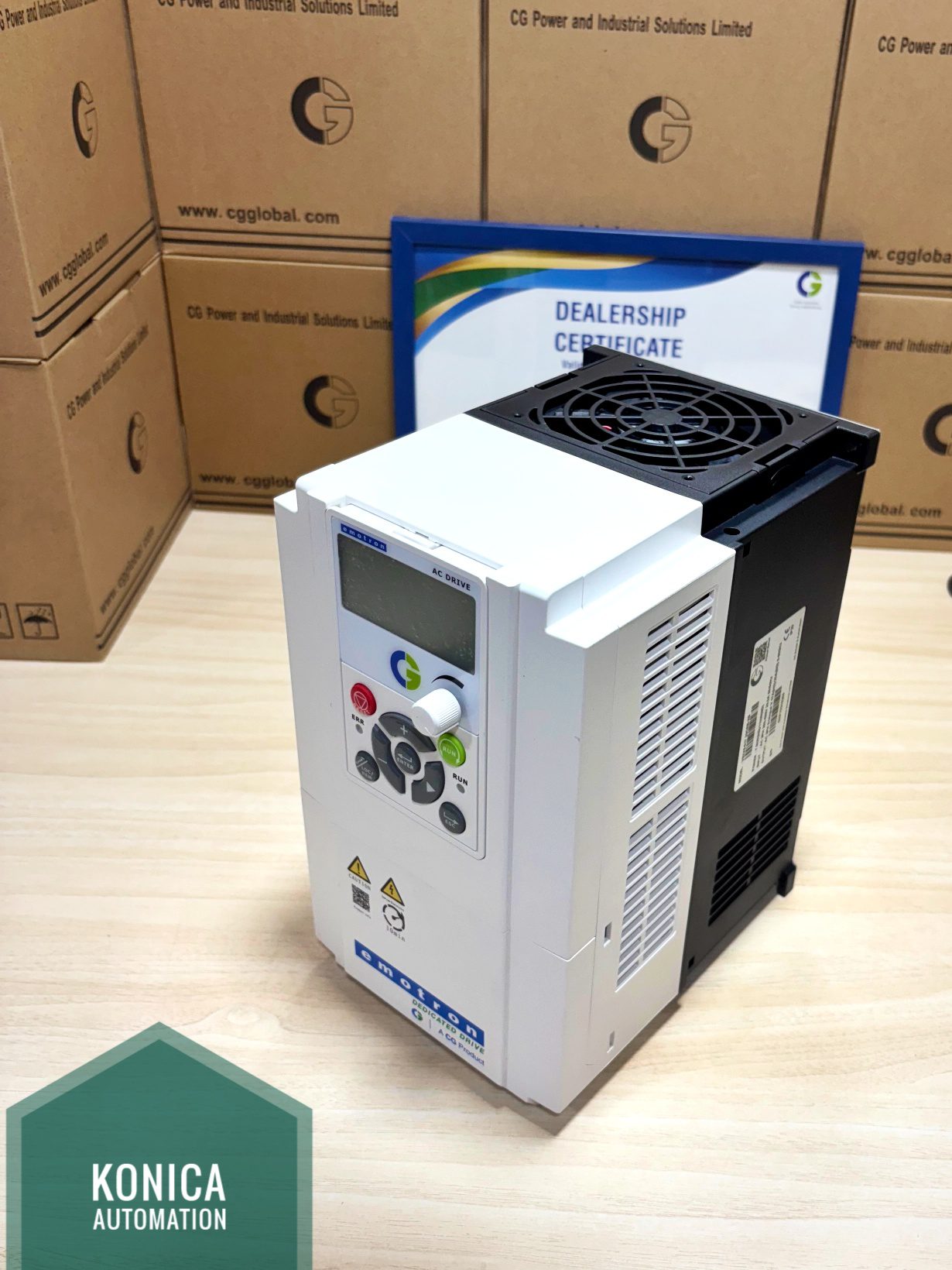

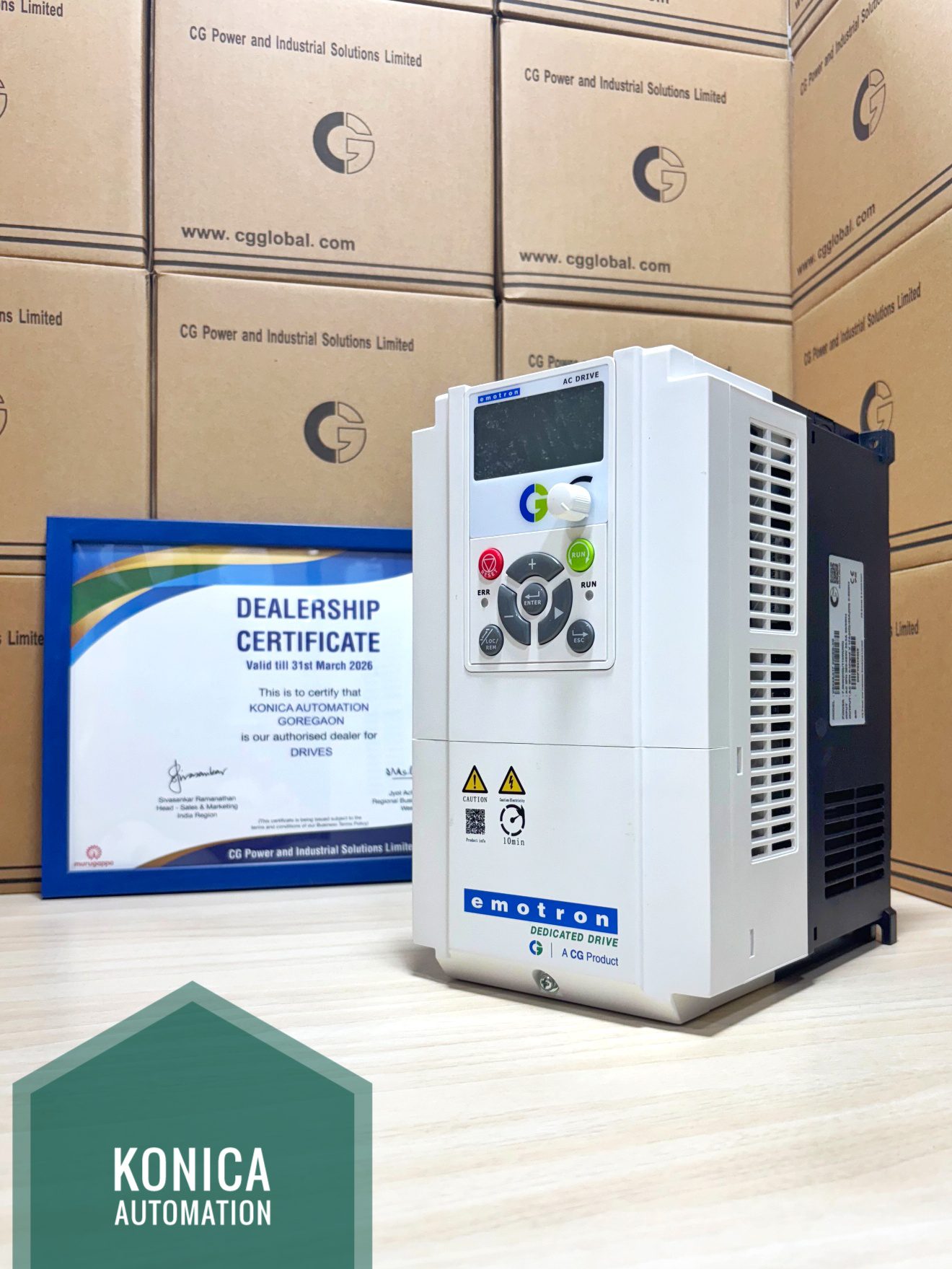

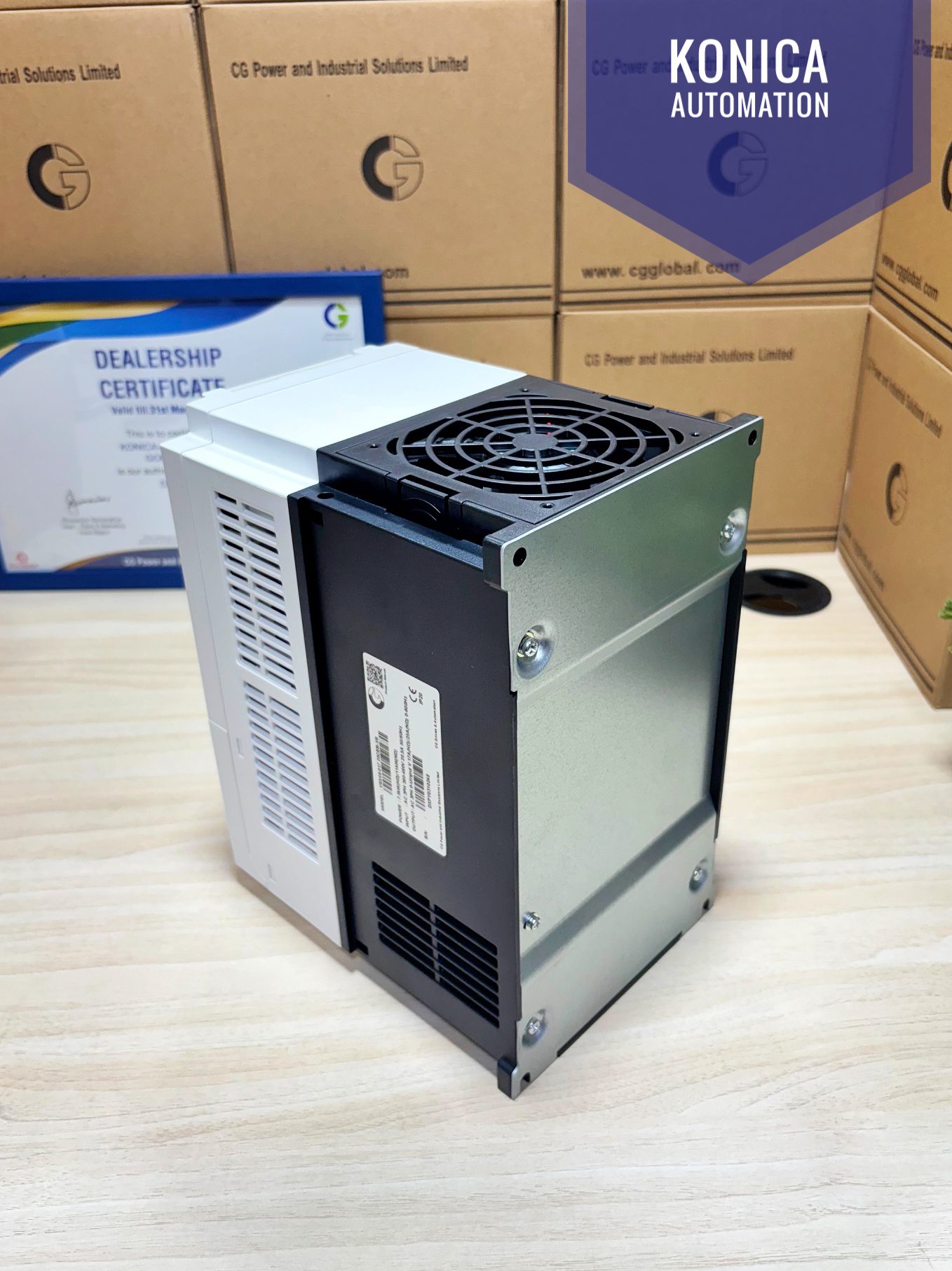

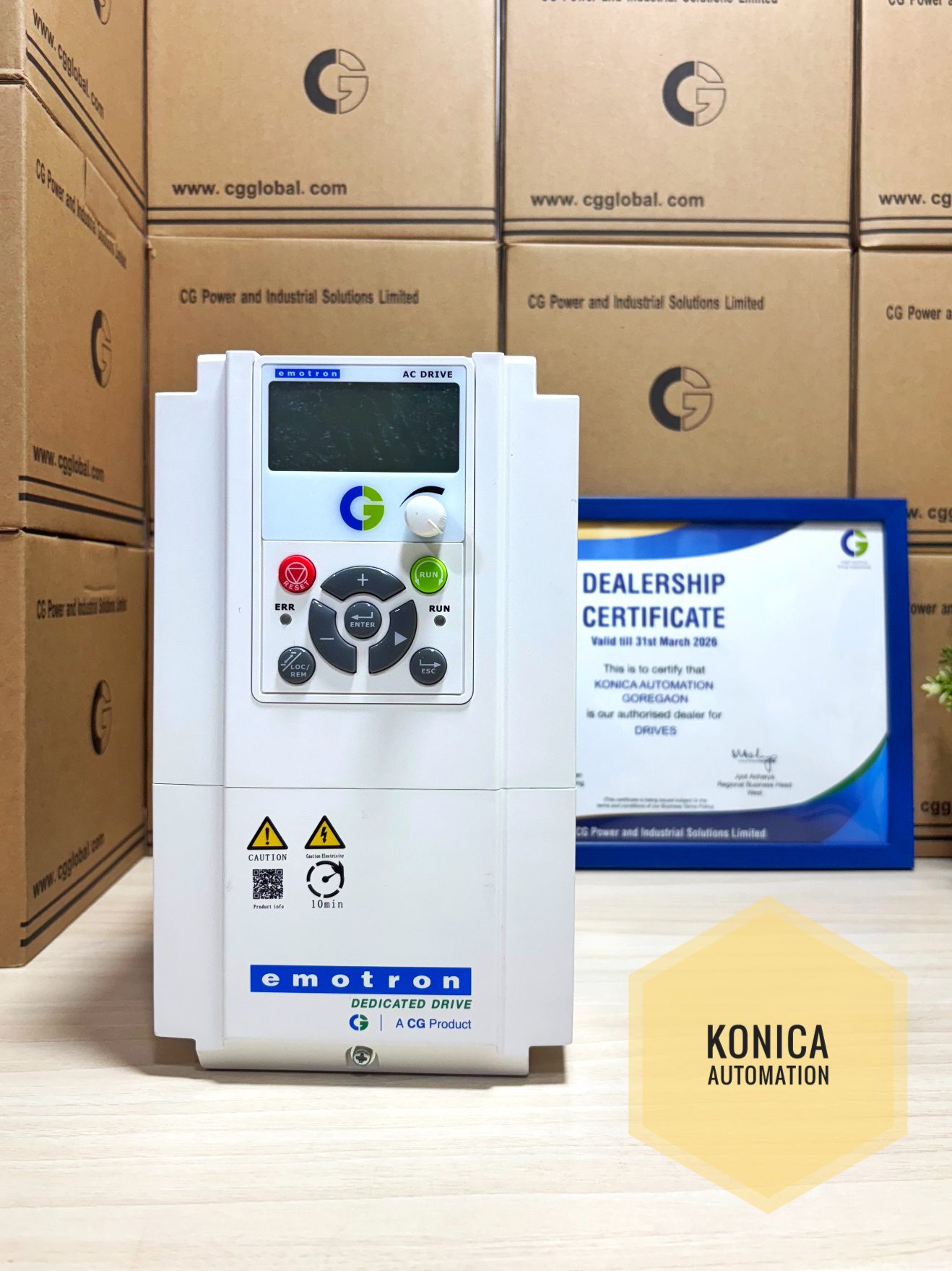

The CG Emotron VSR48017 is a 7.5kW solar pump inverter built to deliver maximum energy efficiency and motor control in solar-powered water systems. Engineered with a 99% MPPT algorithm, this drive ensures that every drop of sunlight is utilized effectively.
Whether you’re powering deep borewells, irrigating fields, or setting up a livestock water supply system in a remote area, this VFD is built to perform in harsh environments with smart protections and hybrid input support.
⚙️ Technical Specifications:
-
🔧 Motor Power: 7.5 kW
-
☀️ Recommended Solar Array: 11–12 kWp
-
🔌 Max DC Input Current: 30 A
-
🔌 Output Current: 17 A
-
📐 Dimensions (mm): 256 x 186 x 195
-
⚖️ Weight: 5.6 kg
⚡ Input & MPPT Control:
-
🌞 DC Input Voltage Range: 230 VDC – 800 VDC
-
🌞 MPPT Operating Range: 450–600 VDC
-
📈 Recommended Voc: 600–700 VDC
-
🌟 MPPT Efficiency: 99%
🌟 Key Features:
✅ 99% MPPT Efficiency – Optimized for every sunlight condition
✅ Soft Start & Stop – Reduces stress on motors and pipes
✅ 200% Overload Handling – Robust for tough conditions
✅ Dual Input Support – Works with both DC solar and AC grid/generator
✅ Sleep/Wake Functions – Intelligent sunlight-based automation
✅ Rugged Build – Heat and dust-resistant with conformal coating
✅ LCD Display – Real-time performance monitoring with oscilloscope UI
✅ Full Motor Protection Suite – Dry run, overload, thermal, stall protections
✅ Modbus RS485 Enabled – Remote monitoring and integration ready
🌍 Best Applications:
-
🚜 Agricultural Water Pumping
-
🐄 Livestock and Dairy Water Supply
-
💧 Solar Borewell and Tube Wells
-
🌾 Irrigation Projects in Rural Areas
-
🏕️ Off-Grid and Remote Water Systems
🛠️ Why Choose VSR48017?
The CG Emotron VSR48017 is built with industrial-grade quality and self-manufactured power components, offering unmatched durability, solar efficiency, and ease of use. A perfect choice for solar-driven water management in power-deficient and off-grid regions.
