☀️ Reliable Solar Pumping VFD with 99% MPPT Efficiency

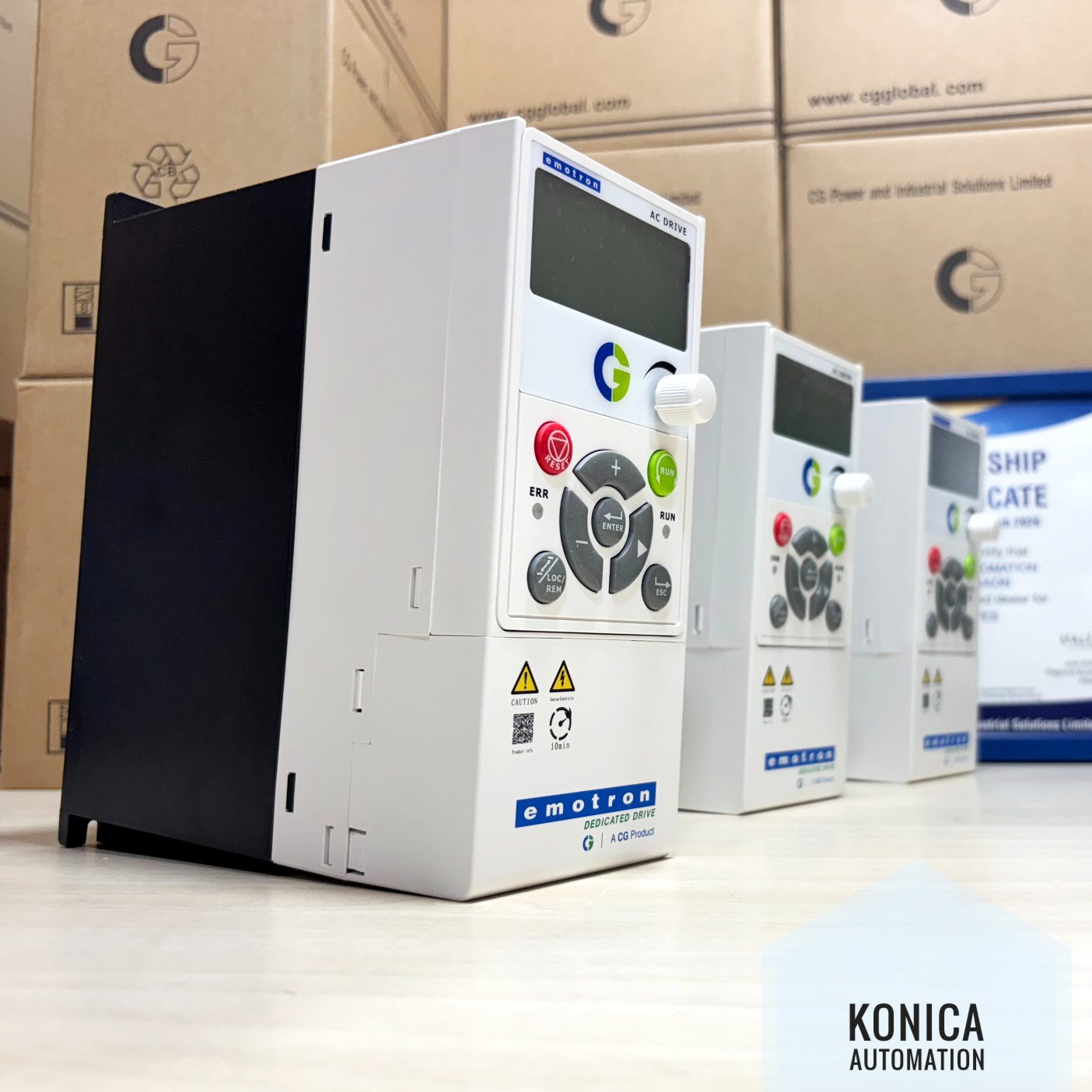

The CG Emotron VSR48003 is a compact and energy-efficient solar pump inverter, designed for powering small-scale three-phase water pumps using solar energy. With 1.5kW motor support, it’s the ideal solution for off-grid irrigation systems, livestock watering, and borewell pumping in remote and rural areas.
Its advanced Maximum Power Point Tracking (MPPT) algorithm delivers real-time efficiency up to 99%, ensuring optimal power usage throughout the day—even under fluctuating sunlight.
⚙️ Technical Specifications:
-
🔧 Motor Power: 1.5 kW
-
☀️ Recommended Solar Array: 2.5–3 kWp
-
🔌 Max DC Input Current: 8 A
-
🔌 Output Current: 3 A
-
📐 Dimensions (mm): 186.6 x 116 x 175
-
⚖️ Weight: 3 kg
⚡ Input & MPPT Control:
-
🌞 DC Input Voltage Range: 230 VDC – 800 VDC
-
🌞 MPPT Operating Range: 450–600 VDC
-
📈 Recommended Voc: 600–700 VDC
-
🌟 MPPT Efficiency: 99%
🌟 Key Features:
✅ Smooth Motor Start-Up – Reduces pump wear and increases lifespan
✅ 200% Overload Capacity – Handles startup surges efficiently
✅ Built-in MPPT Algorithm – Maximum solar conversion at all times
✅ AC/DC Input Support – Ideal for hybrid systems
✅ Sleep/Wake Based on Sunlight – Saves energy, increases automation
✅ Dust & Heat Protection – Rugged design for Indian rural conditions
✅ LCD Monitoring Interface – Real-time status and control
✅ Advanced Pump Protections – Dry run, overload, stall, and thermal safety
✅ Modbus RS485 Ready – Easy integration with external monitoring systems
🌍 Ideal Applications:
-
🌾 Small-Scale Solar Irrigation
-
🚰 Remote Borewells & Tube Wells
-
🐄 Cattle and Livestock Watering
-
🏕️ Eco-Friendly Off-Grid Water Projects
-
🛠️ Agri-Tech and Solar Startups
🛠️ Why Choose VSR48003?
Built by CG Emotron, a leader in power electronics, the VSR48003 solar pump drive combines robust design, smart automation, and maximum energy efficiency. It’s an ideal fit for users looking for a low-cost, high-performance solar water pumping solution.
