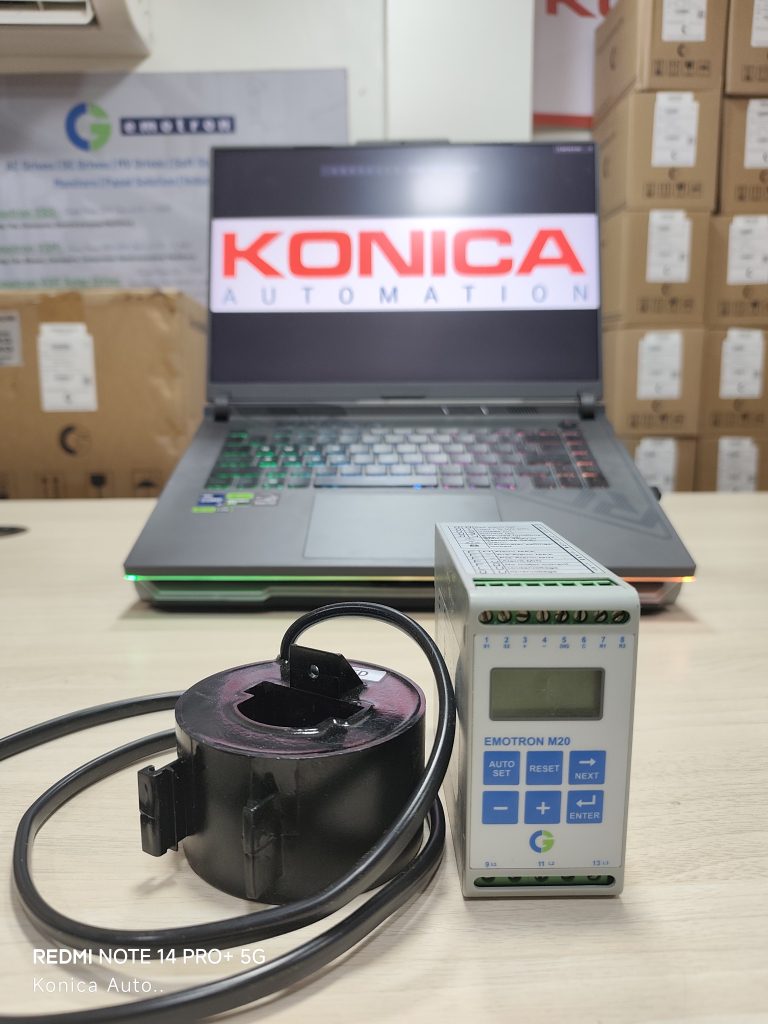

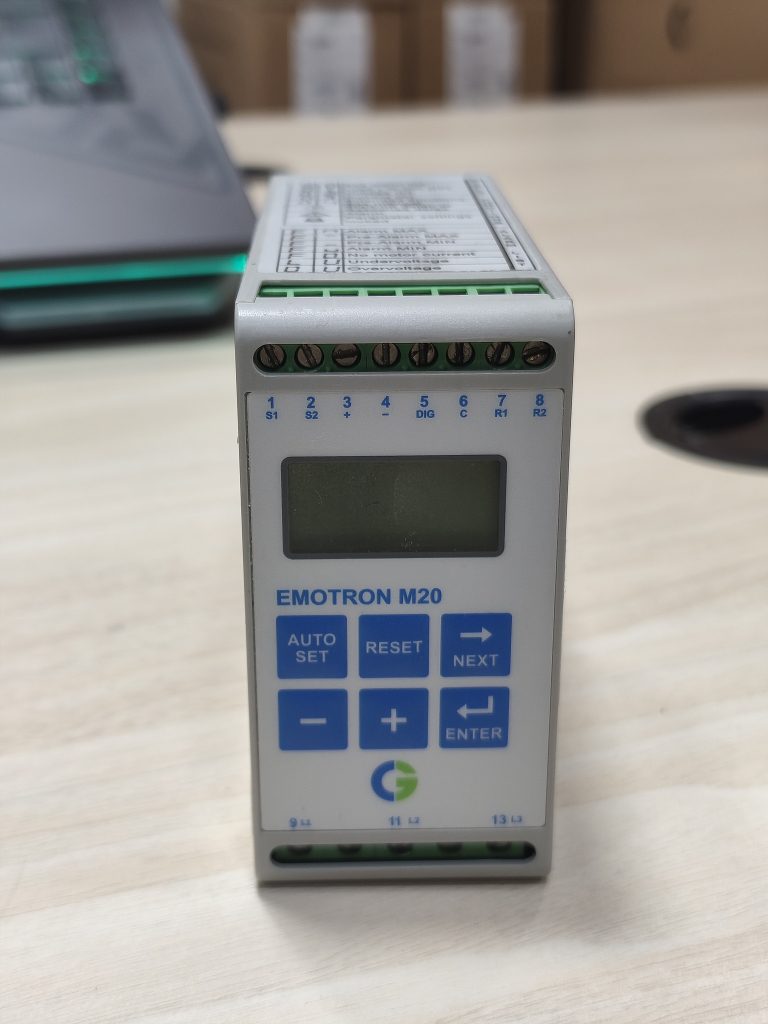

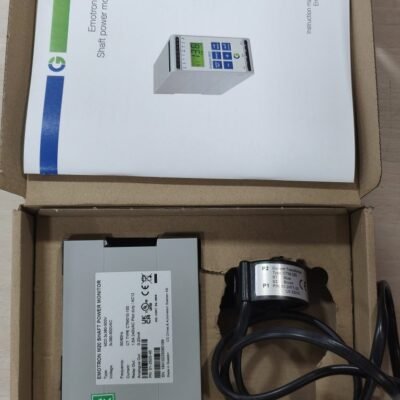

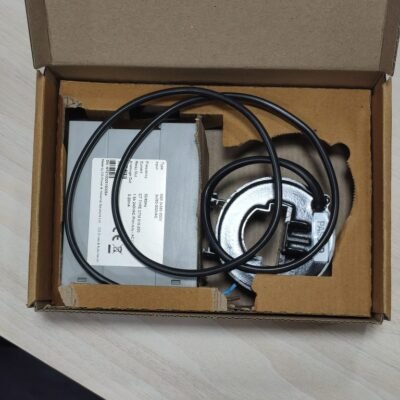

CG Emotron M20 Shaft Power Monitor with CTM010 🔧⚡ | Motor Load Protection up to 10A for Pumps, Mixers & Conveyors

The CG Emotron M20 Shaft Power Monitor with CTM010 is a smart and compact solution for real-time motor load protection. Designed to monitor shaft power output directly, this unit uses your motor as its own sensor — no need for flow switches, pressure sensors, or external transmitters! 🎯💡

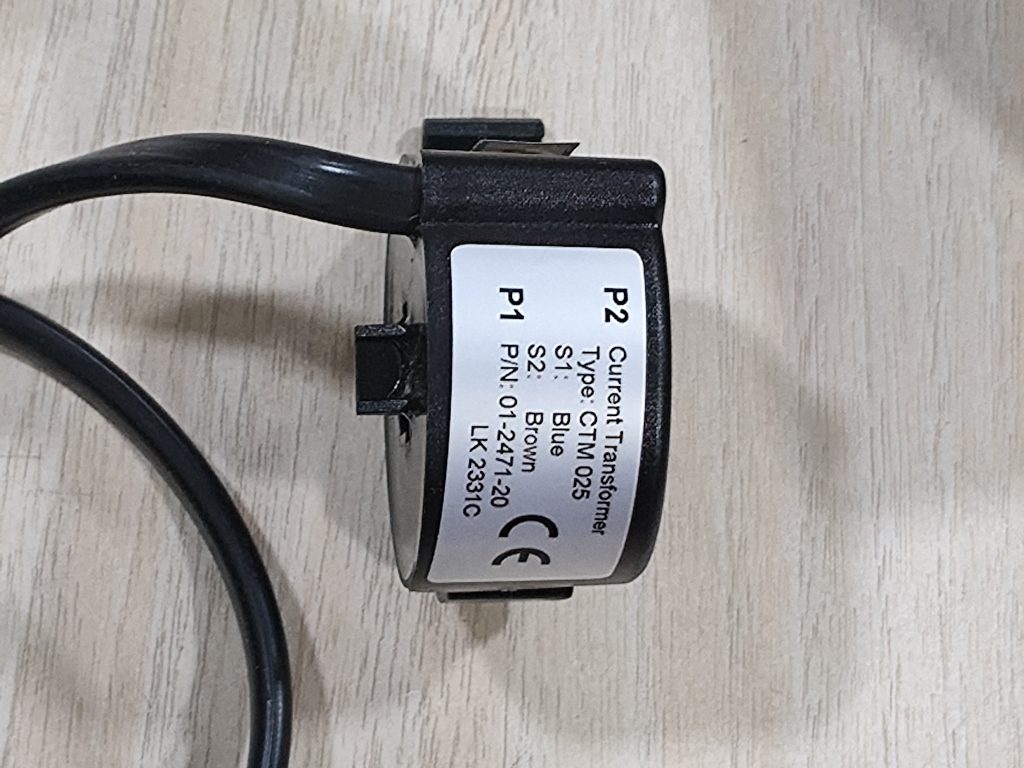

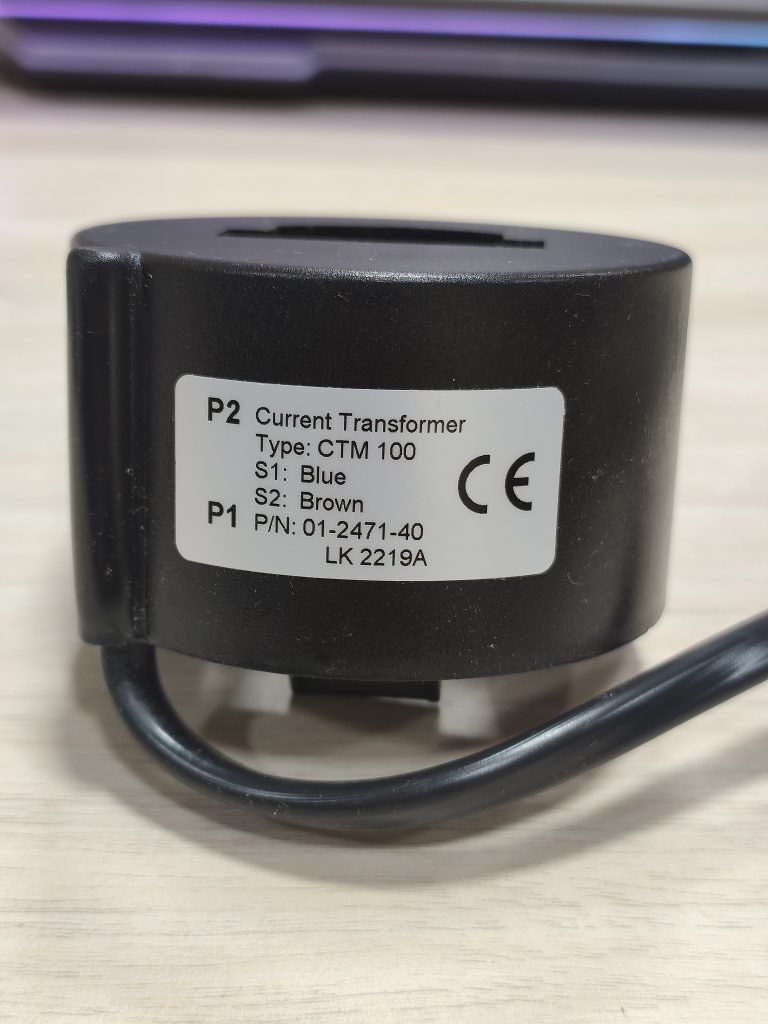

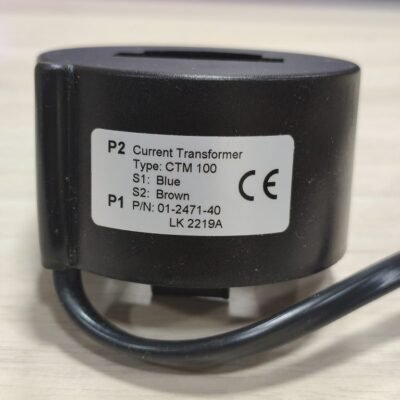

Paired with the CTM010 current transformer, this setup supports up to 10A motor current, making it ideal for small to mid-sized pumps, mixers, fans, and conveyors. 🌀🚿

🔧 Key Features:

✅ True shaft power monitoring using motor current + phase angle
🔧 No external sensors required — lower cost, faster install
⚙️ Auto-Set: Configure 4 protection points in 3 seconds

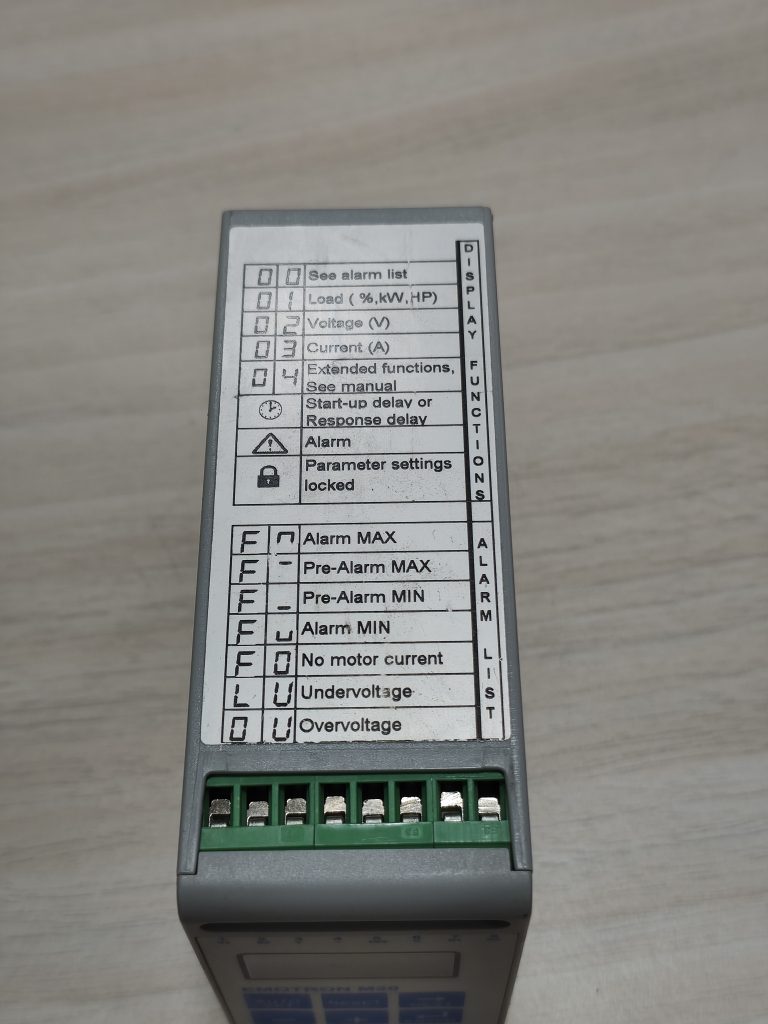

📈 LED display shows real-time motor load
📊 Analog output for PLC/SCADA integration
🔌 DIN-rail mounting — compact & reliable

📦 Technical Specs:

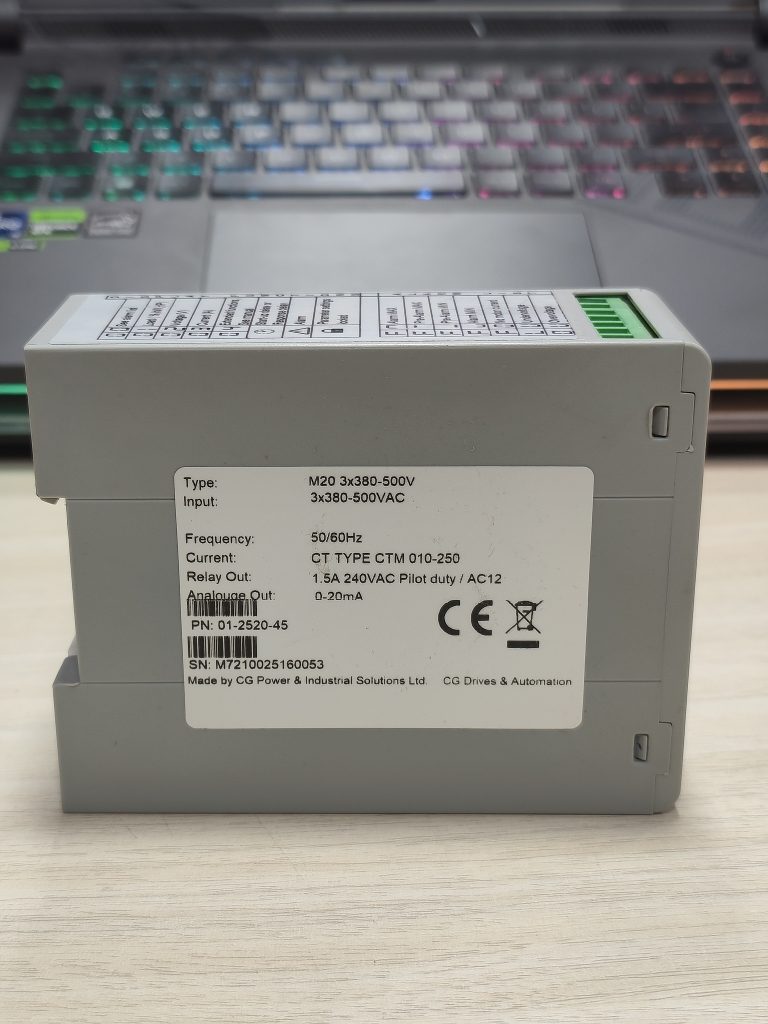

• Model: Emotron M20 + CTM010

• Current Range: 0–10A

• Supply Voltage: 100–240 VAC / 380–500 VAC / 525–690 VAC

• Frequency: 50 / 60 Hz

• Relay Outputs: 2 configurable

• Analog Output: 4–20 mA / 0–20 mA (scalable)

• Display: LED (load %, kW, HP)

• Protection: IP20

• Mounting: 35 mm DIN rail

• Certifications: CE, UL, cUL

🚀 Applications:

🛑 Pumps – dry-run & cavitation protection
⚙️ Mixers – blade detection & viscosity control
📦 Conveyors – jam & no-load detection
💨 Fans & blowers – overload & imbalance alerts

💼 Ready to protect your process with smarter load control?
Get the CG Emotron M20 + CTM010 and avoid downtime, equipment failure, and maintenance headaches! 🛡️🔌
