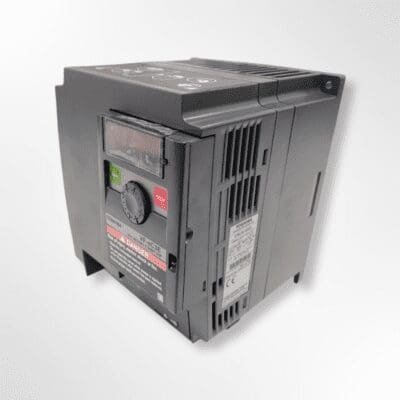

Toshiba VFNC3E-4022P – 3 HP / 2.2 kW Variable Frequency Drive

🔌 Toshiba VFNC3E-4022P – 3 HP / 2.2 kW Variable Frequency Drive 🔌

The Toshiba VFNC3E-4022P is a reliable and compact 3 HP (2.2 kW) Variable Frequency Drive (VFD) from the TOSVERT VF-nC3E Series. Engineered for efficiency and ease-of-use, this 3-phase input/output AC drive offers precision motor control, reduced energy consumption, and extended durability. It’s perfect for a range of applications, including fans, pumps, conveyors, and industrial equipment.

📐 Technical Specifications:

• ✅ Brand: Toshiba

• ✅ Model: VFNC3E-4022P

• ✅ Series: VF-nC3E

• ✅ Power: 2.2 kW / 3 HP (Heavy Duty)

• ✅ Output Current: 5.5 Amps

• ✅ Voltage: 3 Phase Input / Output

• ✅ Enclosure: IP20 Rated

• ✅ Drive Type: General Purpose AC Drive

• ✅ Weight: 2.5 kg

• ✅ Warranty: 1 Year

🌟 Key Features of the VFNC3E-4022P:

✅ User-Friendly Operation

• Intuitive front dial with push-select for parameter setup

• Dedicated RUN/STOP buttons for local motor control

• Easy Mode for 24 frequently used parameters or full Standard Mode for complete configuration

✅ Space-Saving Installation

• Side-by-side mounting possible for compact panel layouts

• Removable terminal cover for safety during wiring and maintenance

✅ Durability & Reliability

• Designed for up to 10 years of lifespan (capacitors, fans)

• Conformal-coated PCB for dust protection

• Operates between -10°C to +60°C

• Suitable for high altitudes up to 3,000 meters

🏭 Application Versatility:

The VFNC3E-4022P is ideal for a wide range of industrial and commercial motor control needs:

• 💧 Water Pumps & Compressors

• 🌬️ HVAC Systems & Industrial Fans

• 📦 Packaging Equipment

• 🍴 Food Processing Lines

• 🚗 Car Wash Systems

• 🏗️ Conveyors, Hoists, and Mixers

🌐 Certifications & Standards:

• ✔️ CE Certified

• ✔️ UL Listed

• ✔️ CSA Approved

• ✔️ Overload Protection: 150% for 60 sec / 200% for 0.5 sec
