☀️ Heavy-Duty 18.5kW Solar Inverter for Demanding Pumps

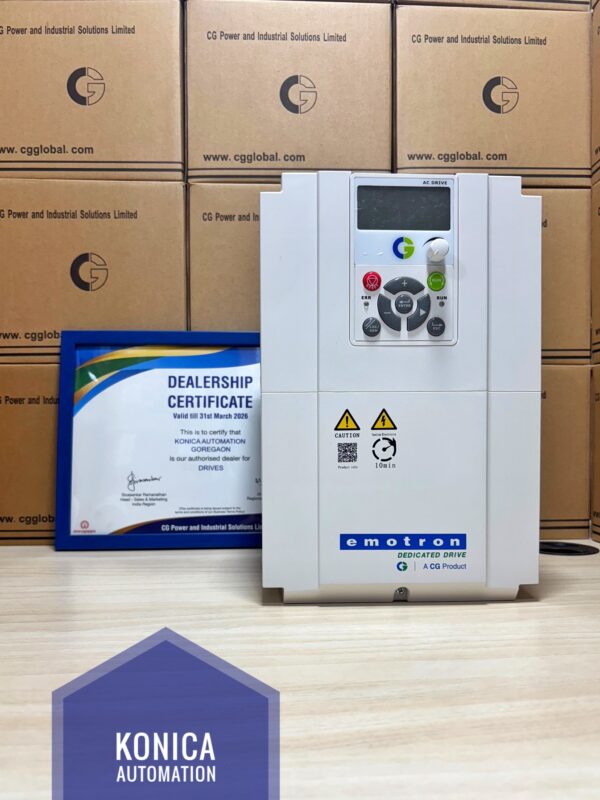

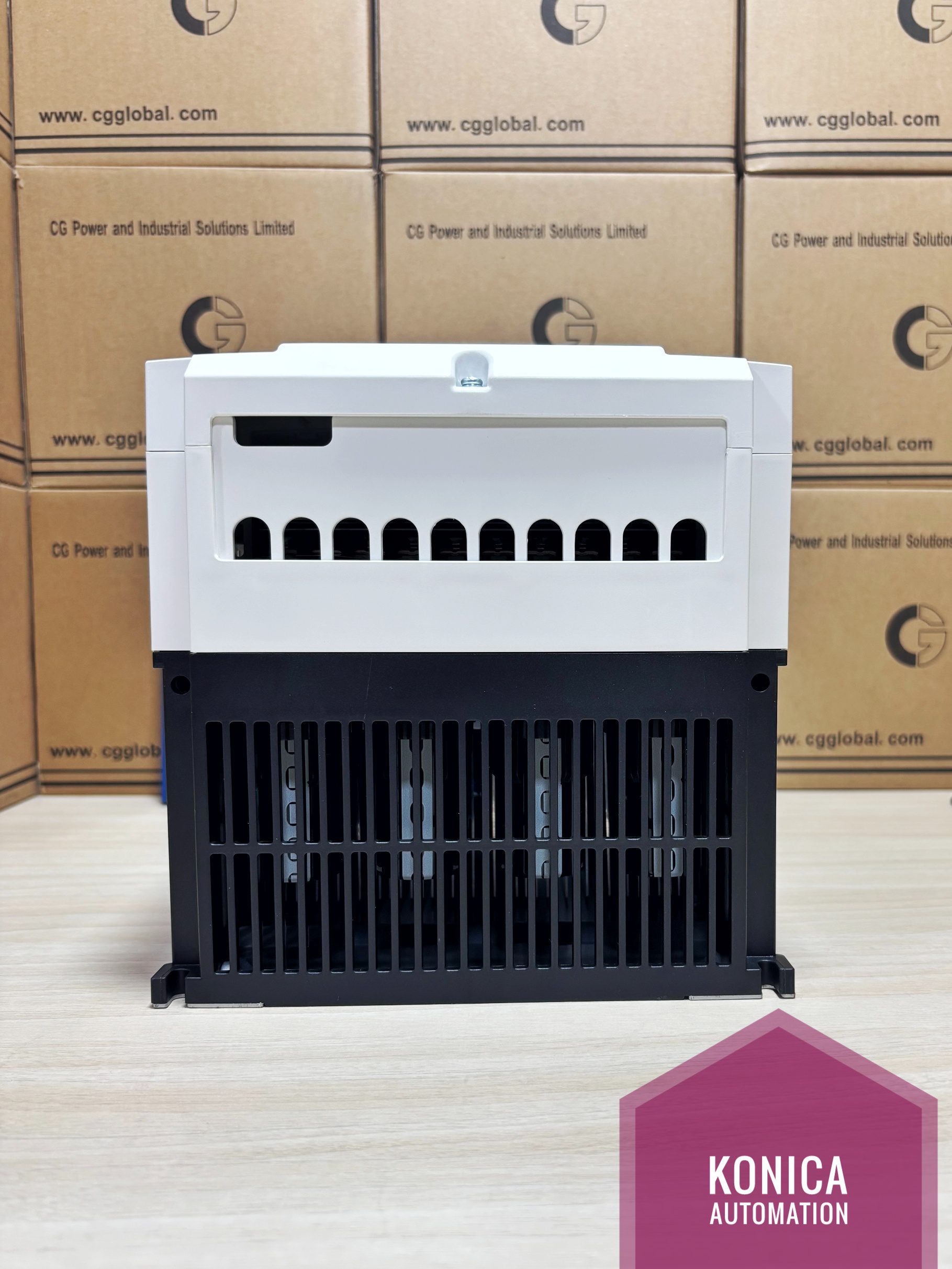

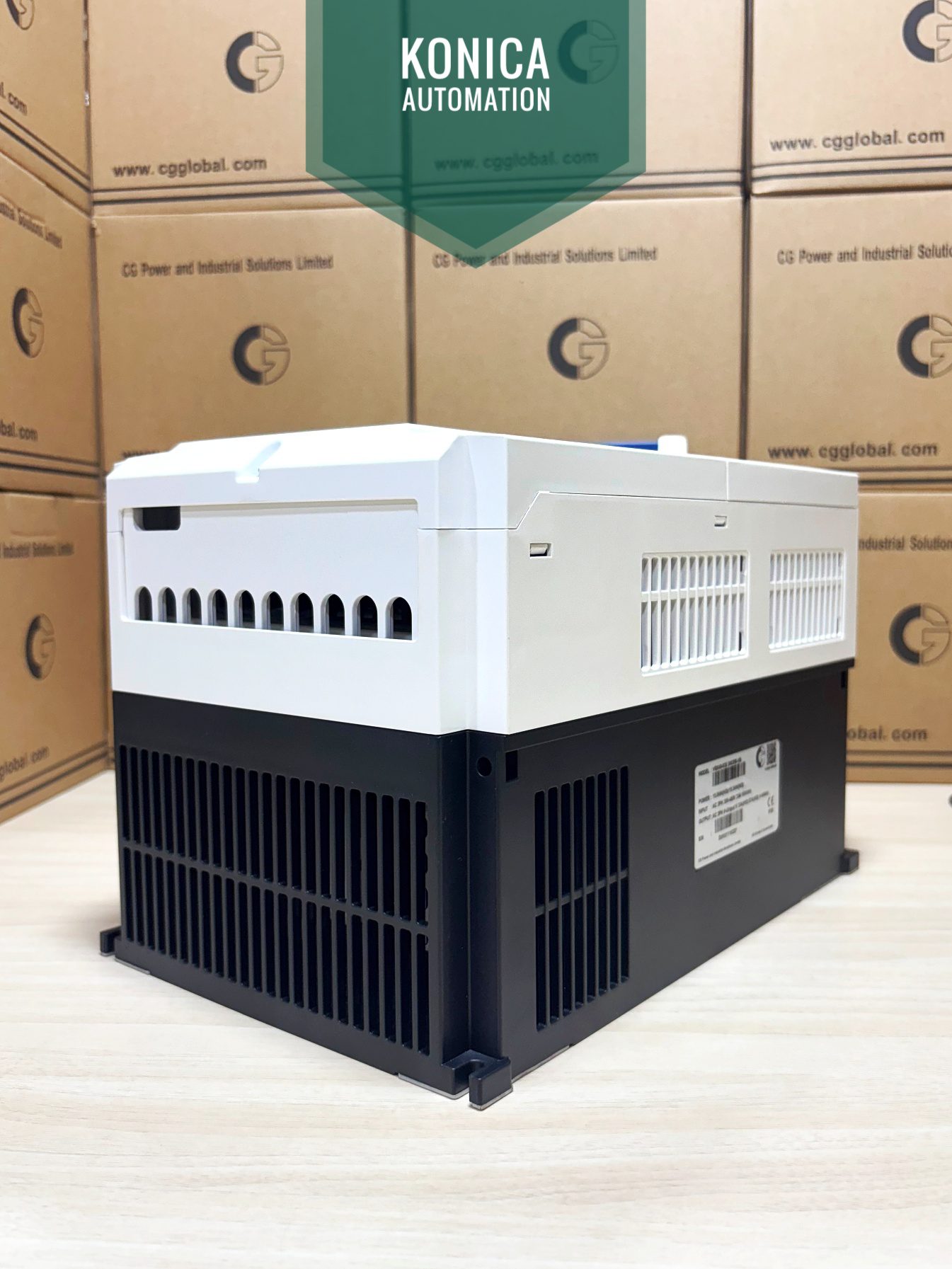

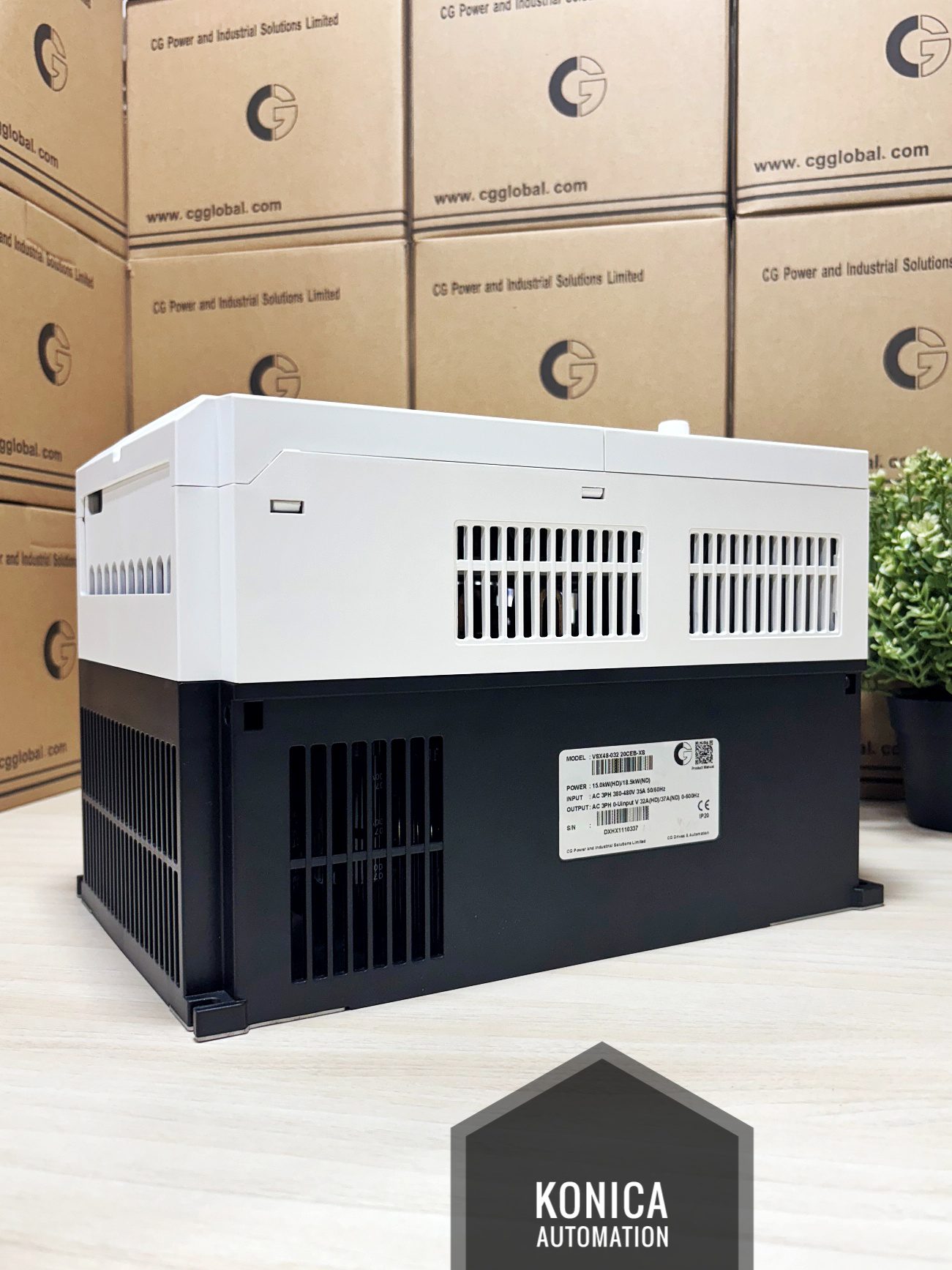

The CG Emotron VSR48038 is an 18.5kW solar VFD engineered for powerful pumping needs in large-scale agricultural, borewell, and livestock watering systems. It converts solar energy with 99% MPPT efficiency, delivering consistent and reliable performance under variable sunlight.
Built for durability and flexibility, this model features AC/DC dual input, intelligent controls, and superior motor protection.
⚙️ Technical Specifications:
-
🔧 Motor Power: 18.5 kW
-
☀️ Recommended Solar Array: 26–27 kWp
-
🔌 Max DC Input Current: 60 A
-
🔌 Output Current: 38 A
-
📐 Dimensions (mm): 256 x 186 x 195
-
⚖️ Weight: 6.5 kg
⚡ Input & MPPT Control:
-
🌞 DC Input Voltage Range: 230–800 VDC
-
🌞 MPPT Operating Range: 450–600 VDC
-
📈 Recommended Voc: 600–700 VDC
-
🌟 MPPT Efficiency: 99%
🌟 Key Features:
✅ 99% MPPT – Optimized for maximum solar power usage
✅ 200% Overload – Handles heavy motor loads effortlessly
✅ Hybrid Input – Works on both solar and grid supply
✅ Sleep/Wake Logic – Auto operation based on sunlight
✅ Smart Motor Protection – Dry run, overload, and more
✅ LCD Panel – Oscilloscope-style monitoring interface
✅ Remote Monitoring – Built-in RS485 Modbus
✅ Dust & Heat Resistant – Conformal coated design
🌍 Best Applications:
-
🚜 Commercial Irrigation Fields
-
💧 Deep Borewell & Tube Well Systems
-
🐄 Livestock and Dairy Farms
-
🏞️ Off-Grid Water Infrastructure Projects
🛠️ Why Choose VSR48038?
The VSR48038 offers unmatched power efficiency, reliability, and adaptability for demanding solar pump installations. Ideal for areas with high water demand and unreliable grid supply.
