☀️ Advanced Solar Drive for Reliable Pumping Power

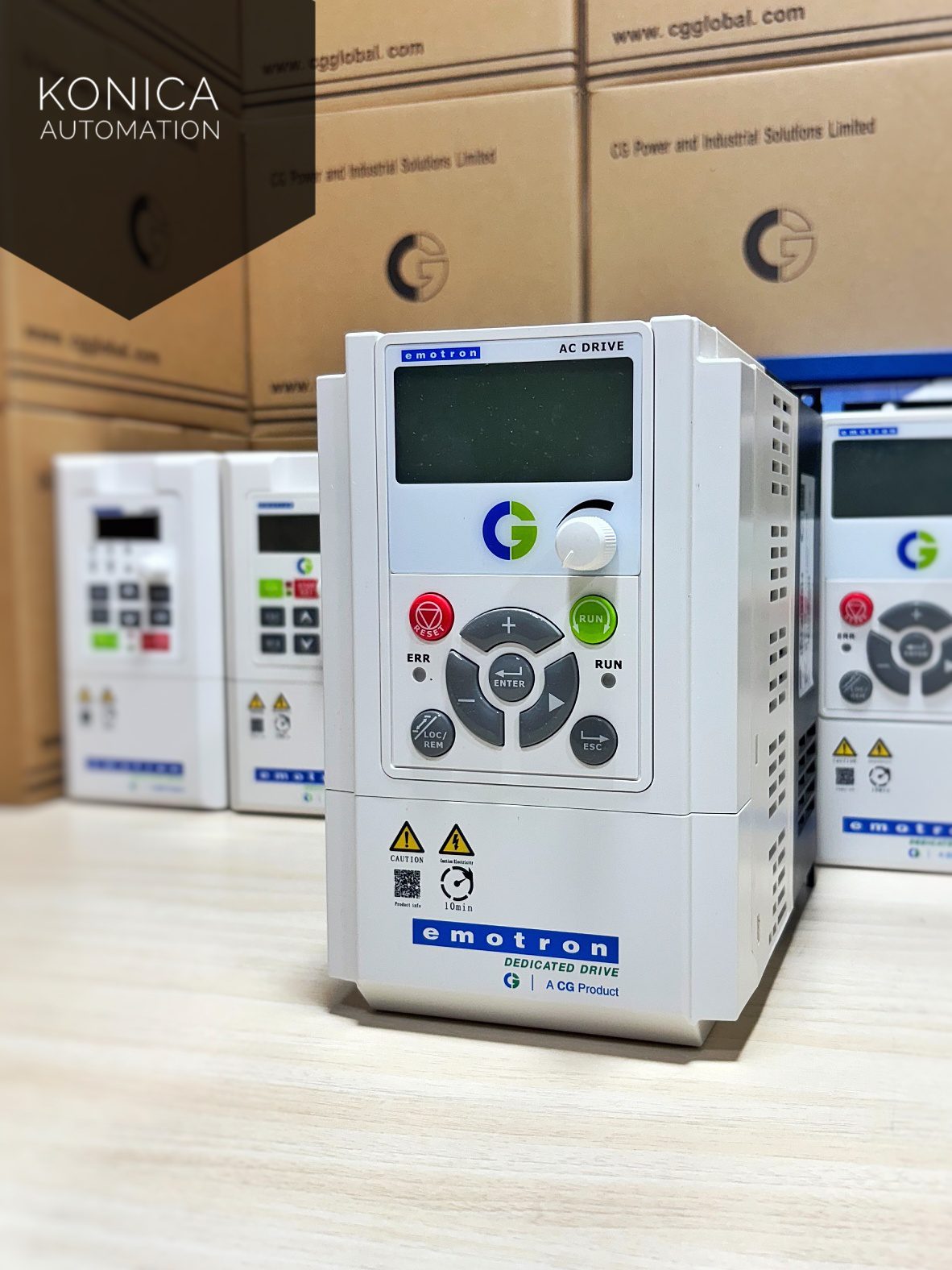

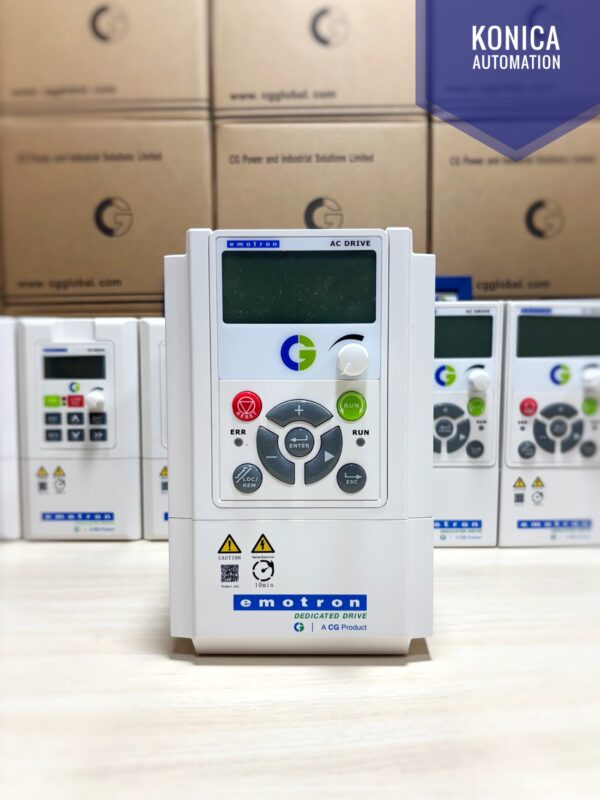

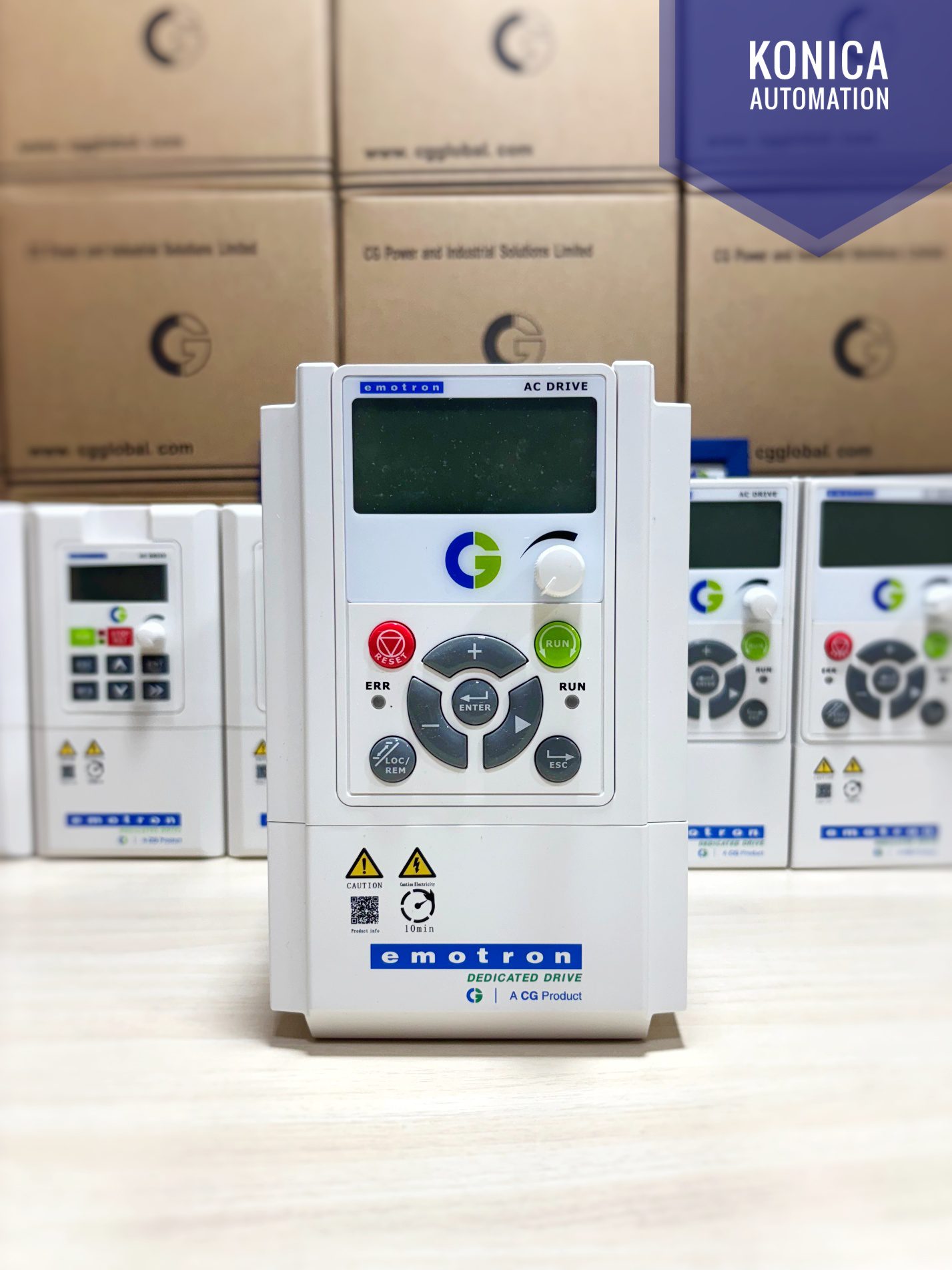

The CG Emotron VSR48009 is a 4.0kW solar pumping VFD designed to convert solar DC input into stable AC output to power three-phase motors. With its 99% MPPT efficiency, it ensures high energy utilization from your solar array—ideal for agriculture, livestock watering, borewells, and village water distribution.
This drive includes smart automation, hybrid input compatibility, and tough protection against heat, dust, and motor faults.
⚙️ Technical Specifications:
-
🔧 Motor Power: 4.0 kW
-
☀️ Recommended Solar Array: 6.0–6.5 kWp
-
🔌 Max DC Input Current: 15 A
-
🔌 Output Current: 9 A
-
📐 Dimensions (mm): 186.6 x 116 x 175
-
⚖️ Weight: 3 kg
⚡ Input & MPPT Control:
-
🌞 DC Input Voltage Range: 230 VDC – 800 VDC
-
🌞 MPPT Operating Range: 450–600 VDC
-
📈 Recommended Voc: 600–700 VDC
-
🌟 MPPT Efficiency: 99%
🌟 Key Features:
✅ MPPT Efficiency of 99% – Optimizes energy output
✅ Soft Start Mechanism – Minimizes mechanical wear
✅ 200% Overload Capability – Handles heavy motor loads
✅ AC + DC Input – Supports hybrid system setups
✅ Intelligent Day/Night Mode – Auto sleep/wake functionality
✅ IP-Rated Design – Built for harsh outdoor use
✅ LCD Panel – Real-time pump performance display
✅ Motor Protection Features – Thermal, stall, dry run, and overload safeguards
✅ Modbus RS485 Communication – Seamless integration for monitoring
🌍 Best Applications:
-
🌿 Solar-Powered Irrigation Pumps
-
🐐 Farm and Livestock Watering
-
💦 Borewell & Tube Well Projects
-
🚜 Agricultural Water Management
-
🌄 Remote and Off-Grid Water Supply
🛠️ Why Choose VSR48009?
Crafted for reliability, the VSR48009 from CG Emotron is designed for long-term durability and solar performance. It offers high MPPT efficiency, a compact footprint, and robust protection features for peace of mind in off-grid or rural operations.
