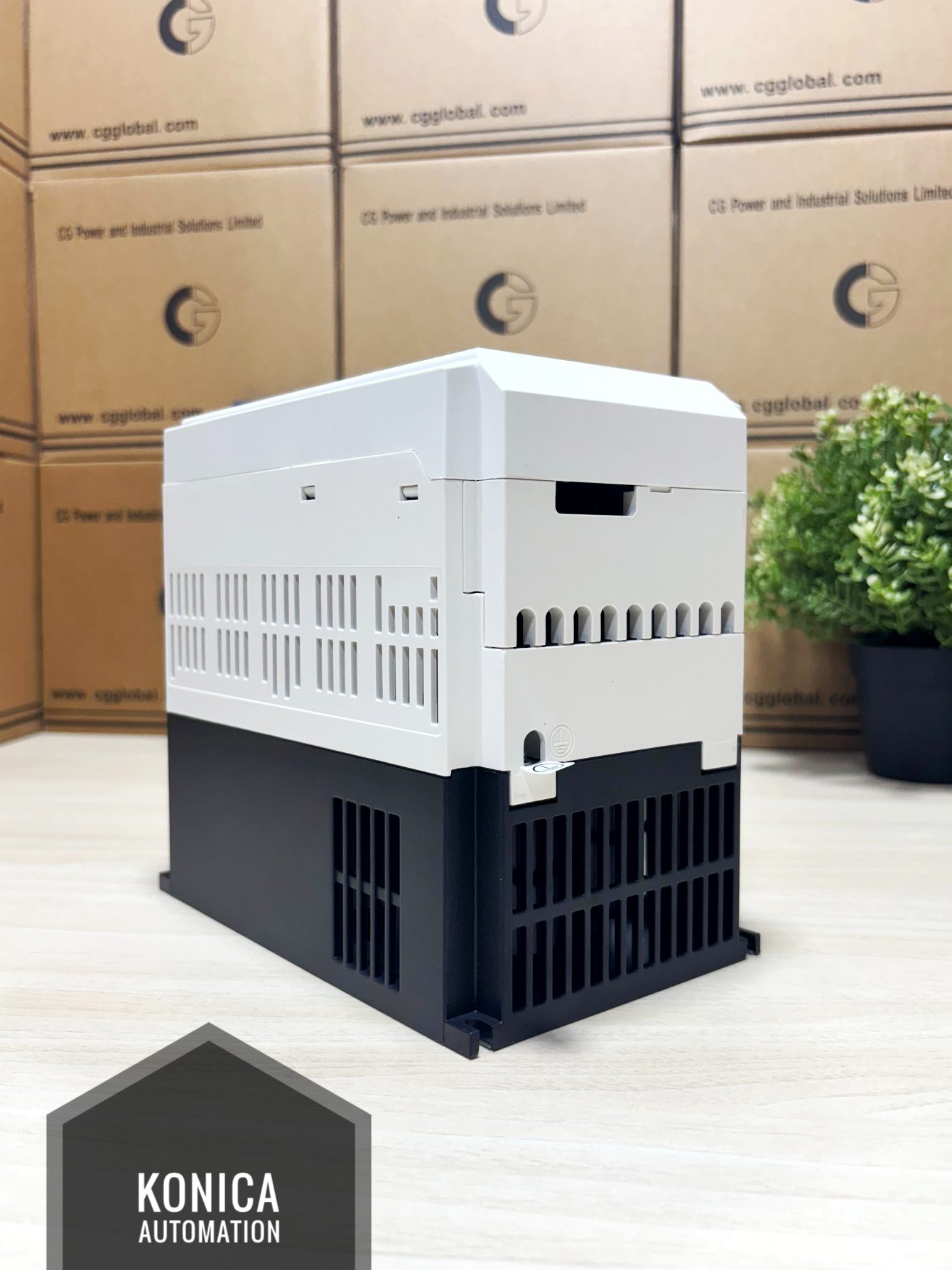

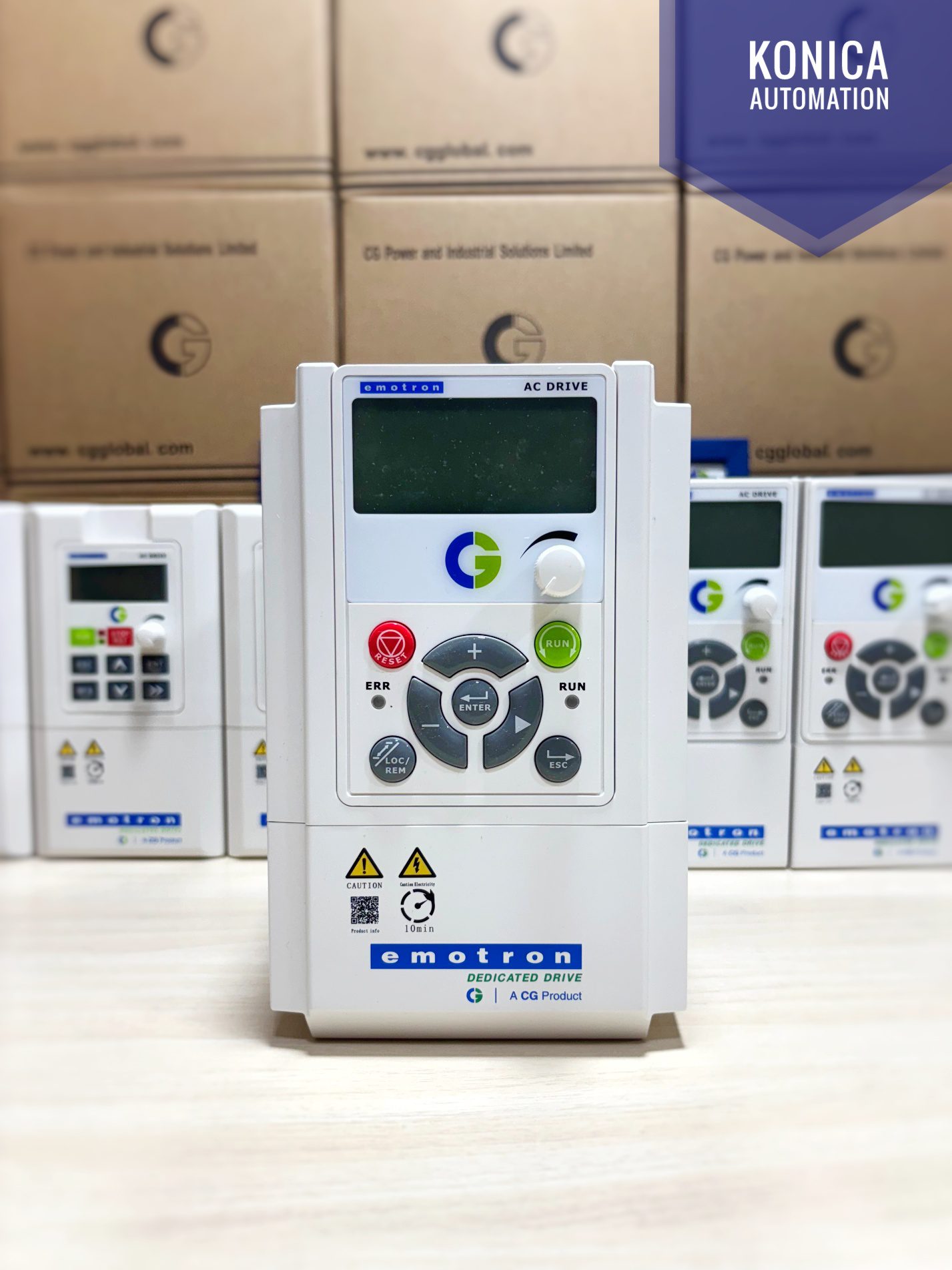

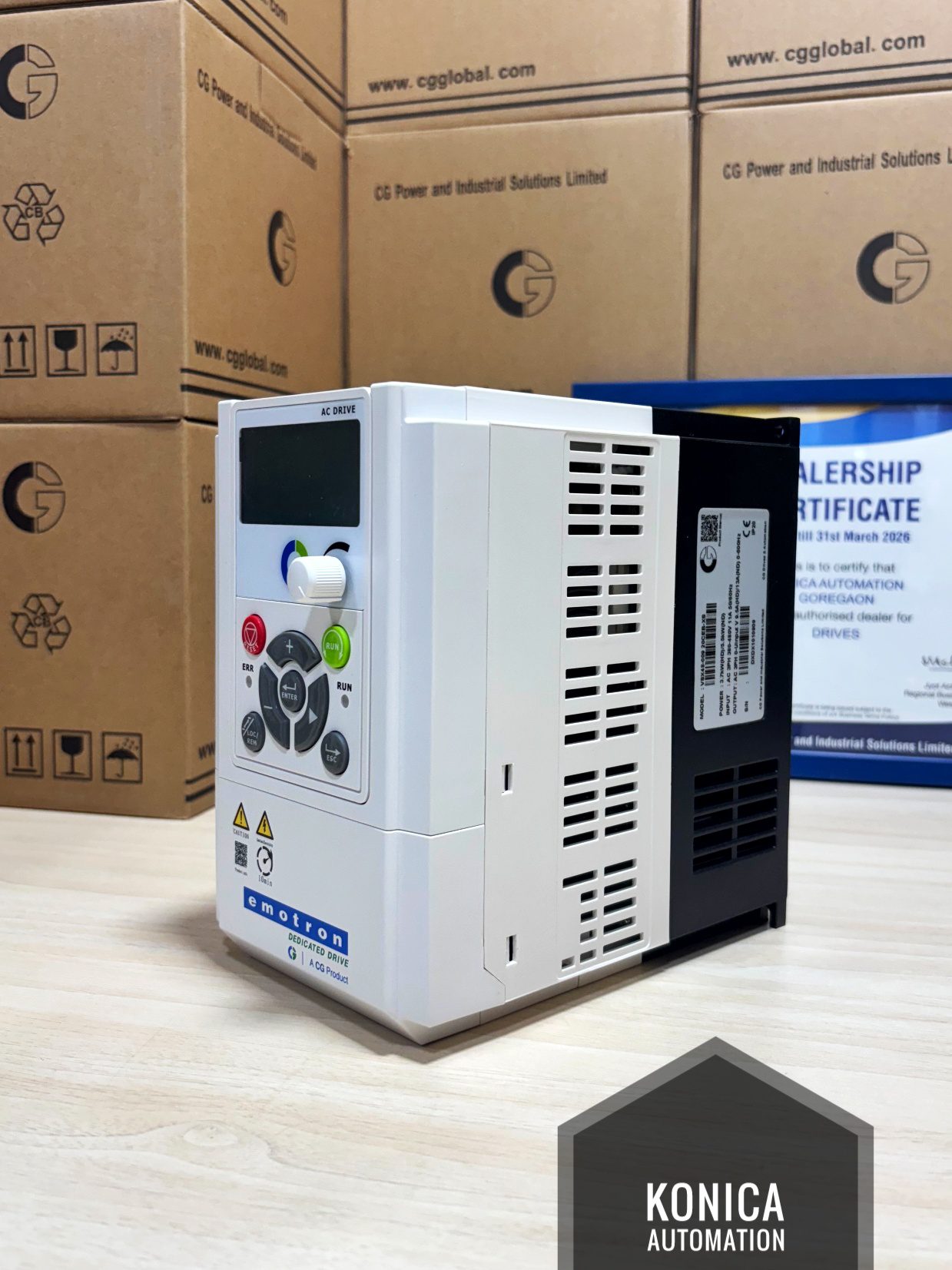

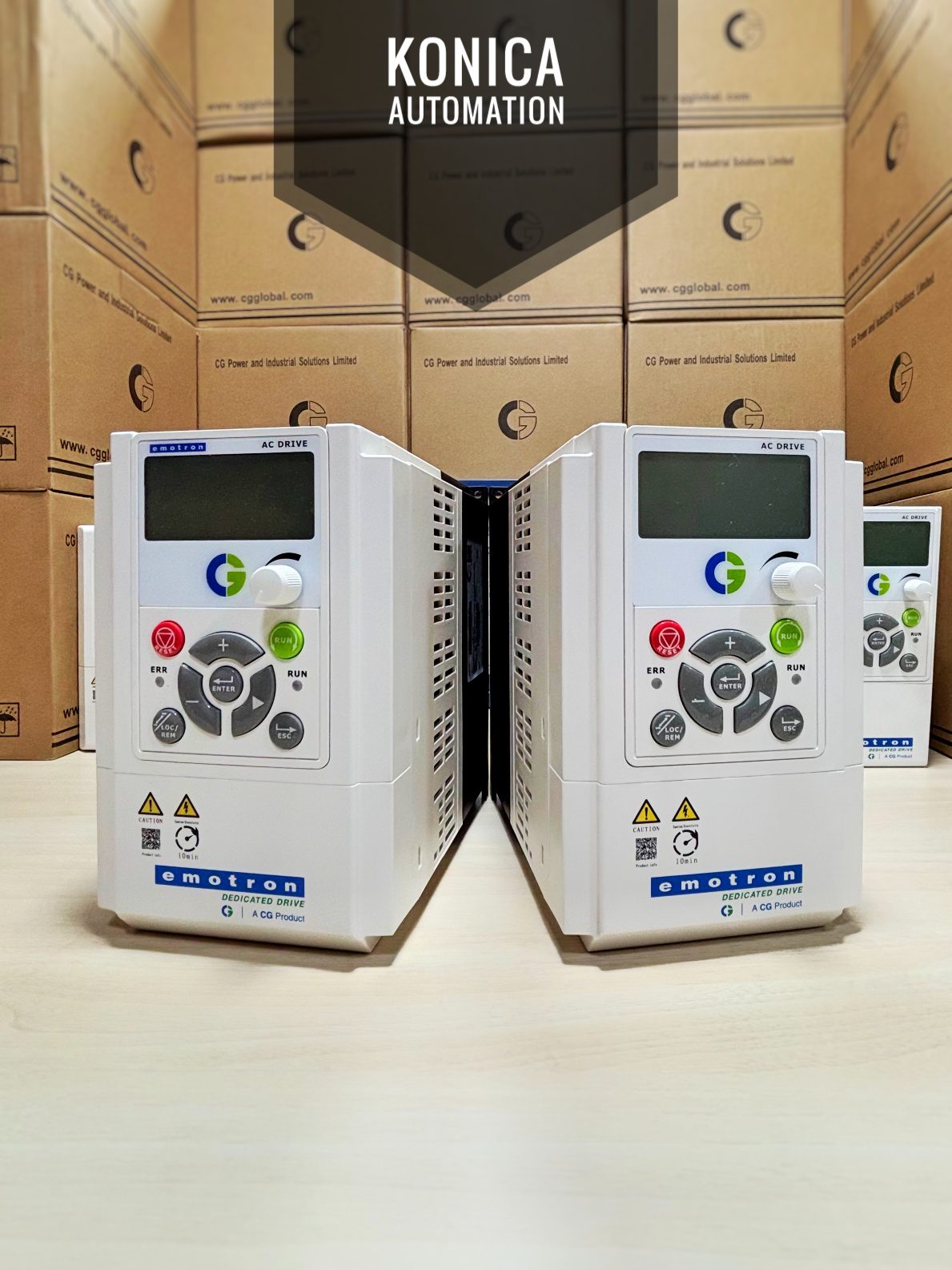

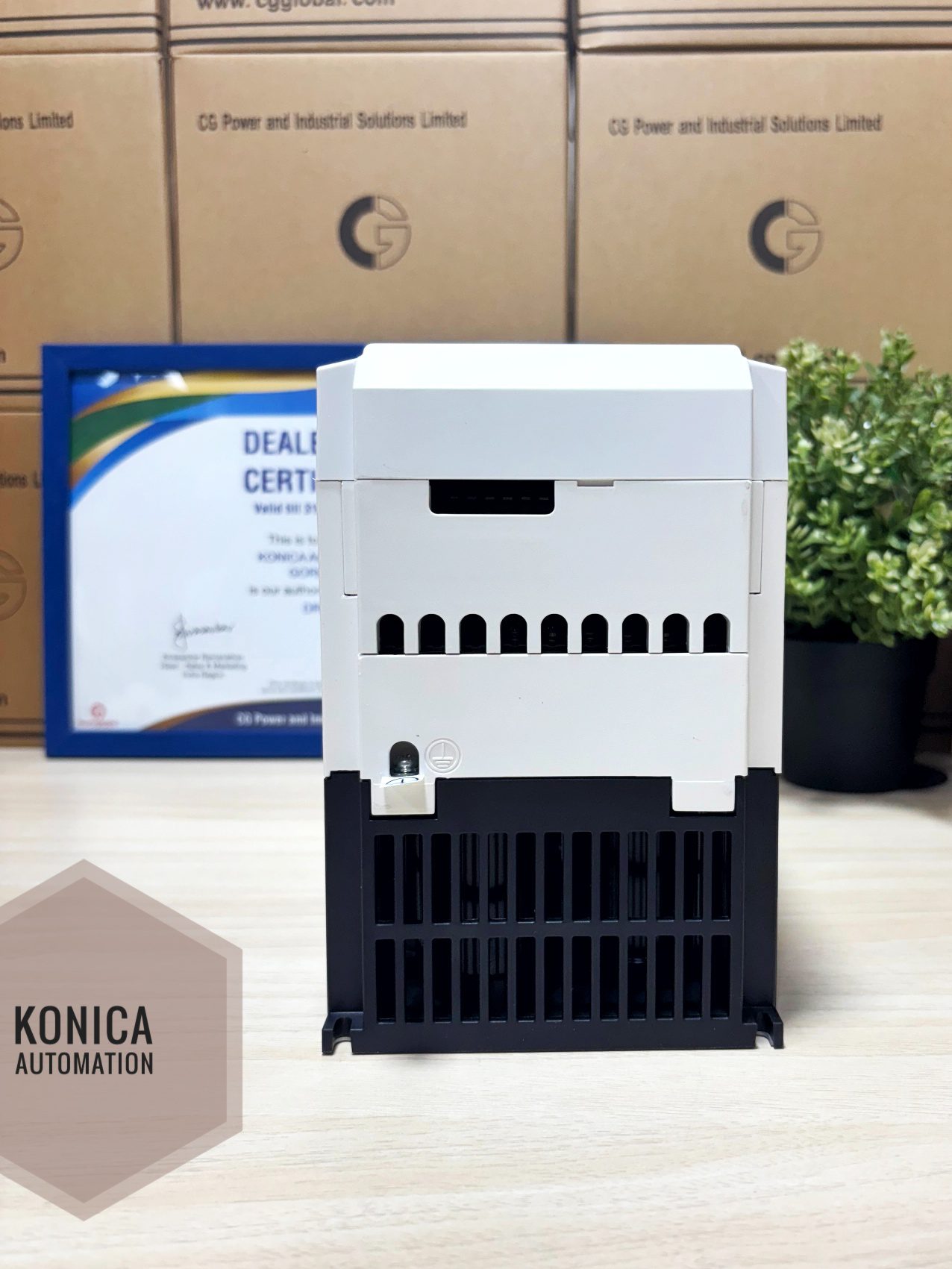

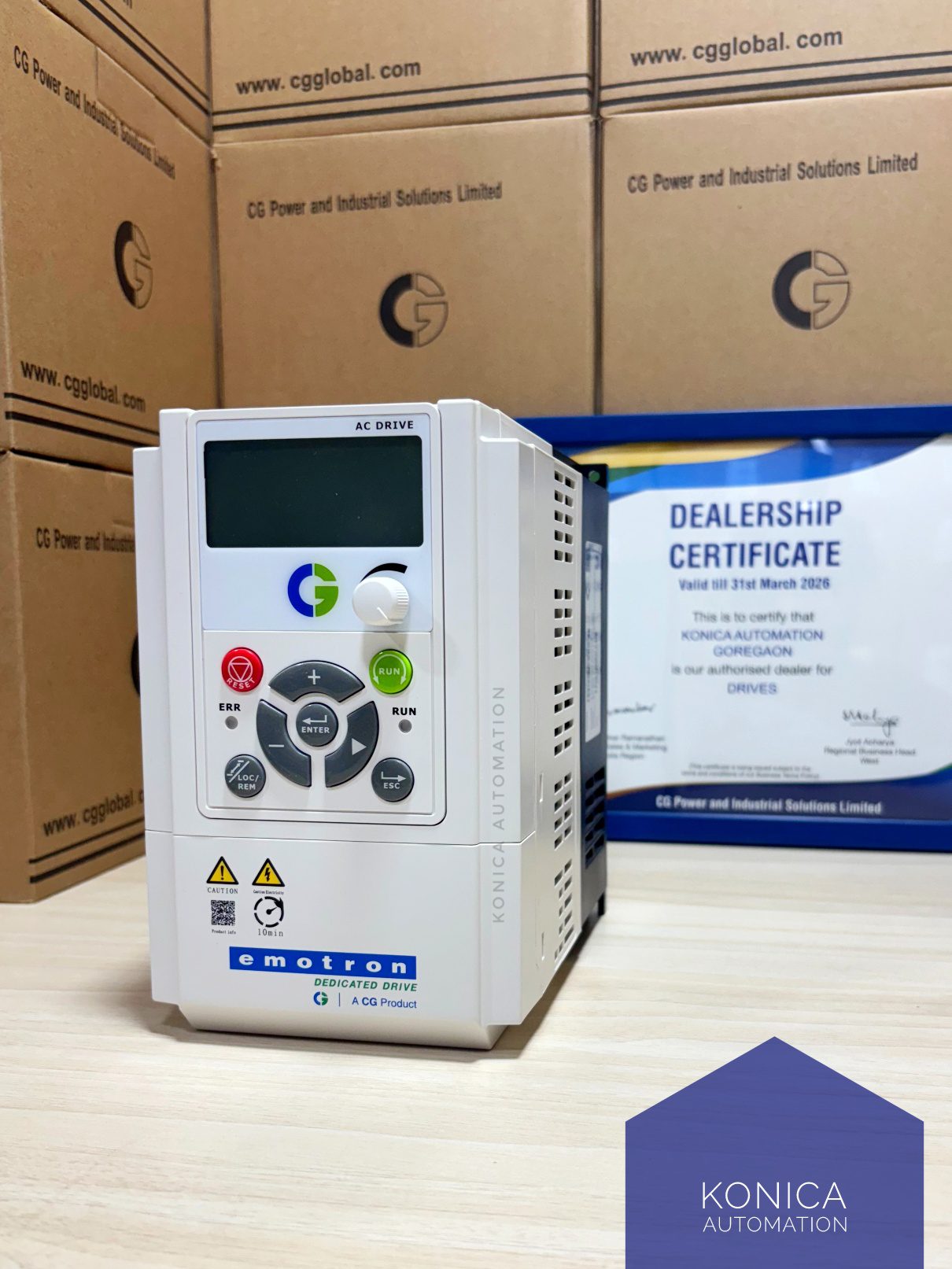

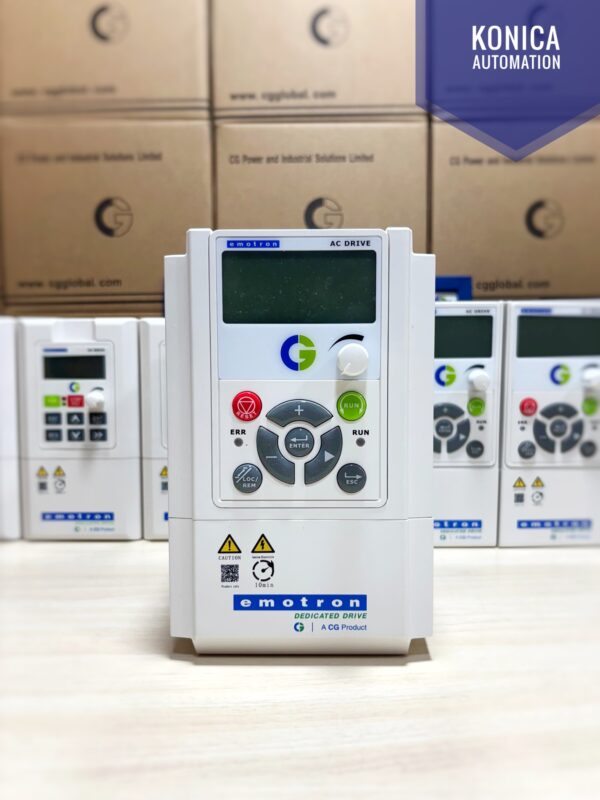

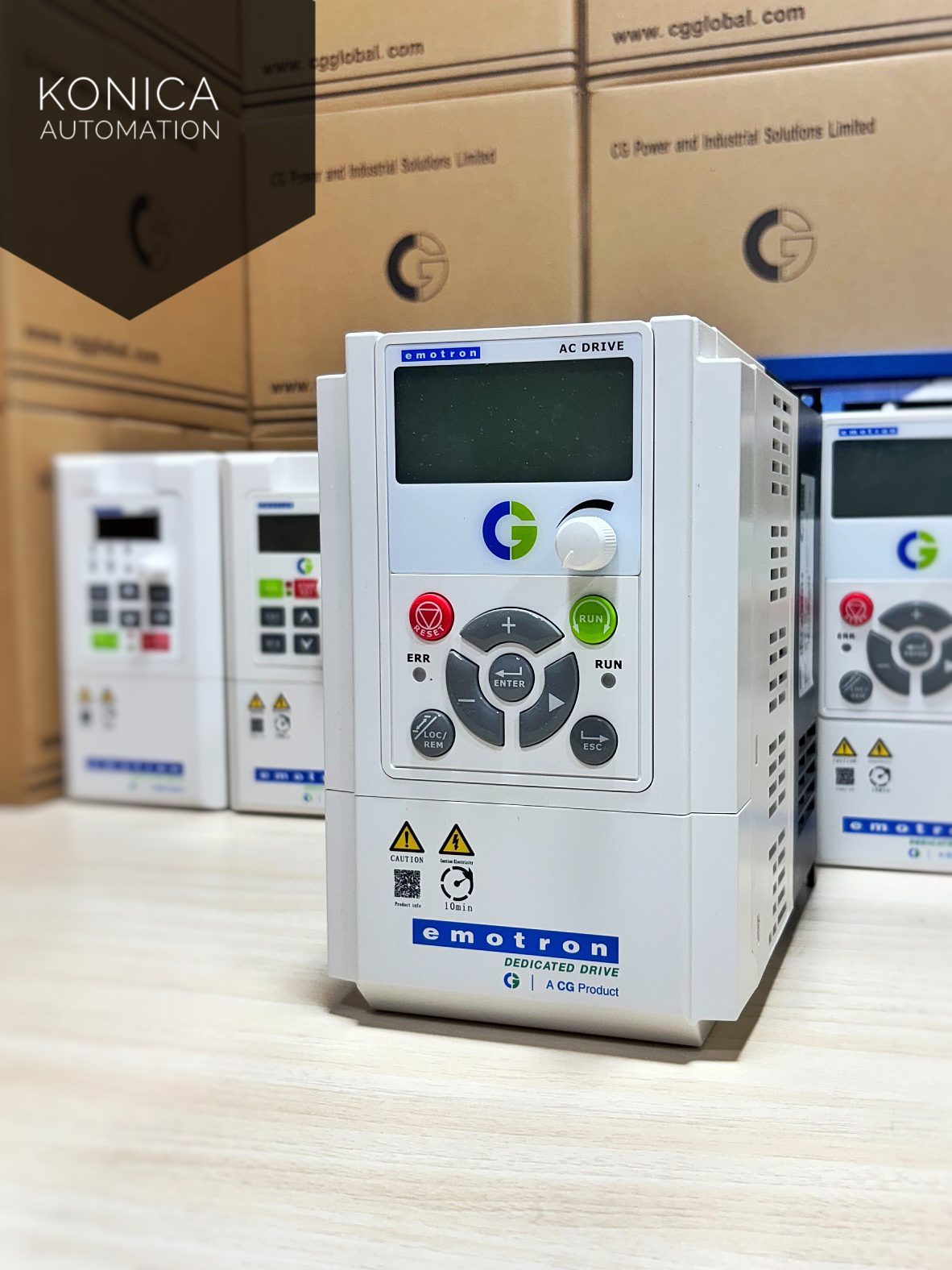

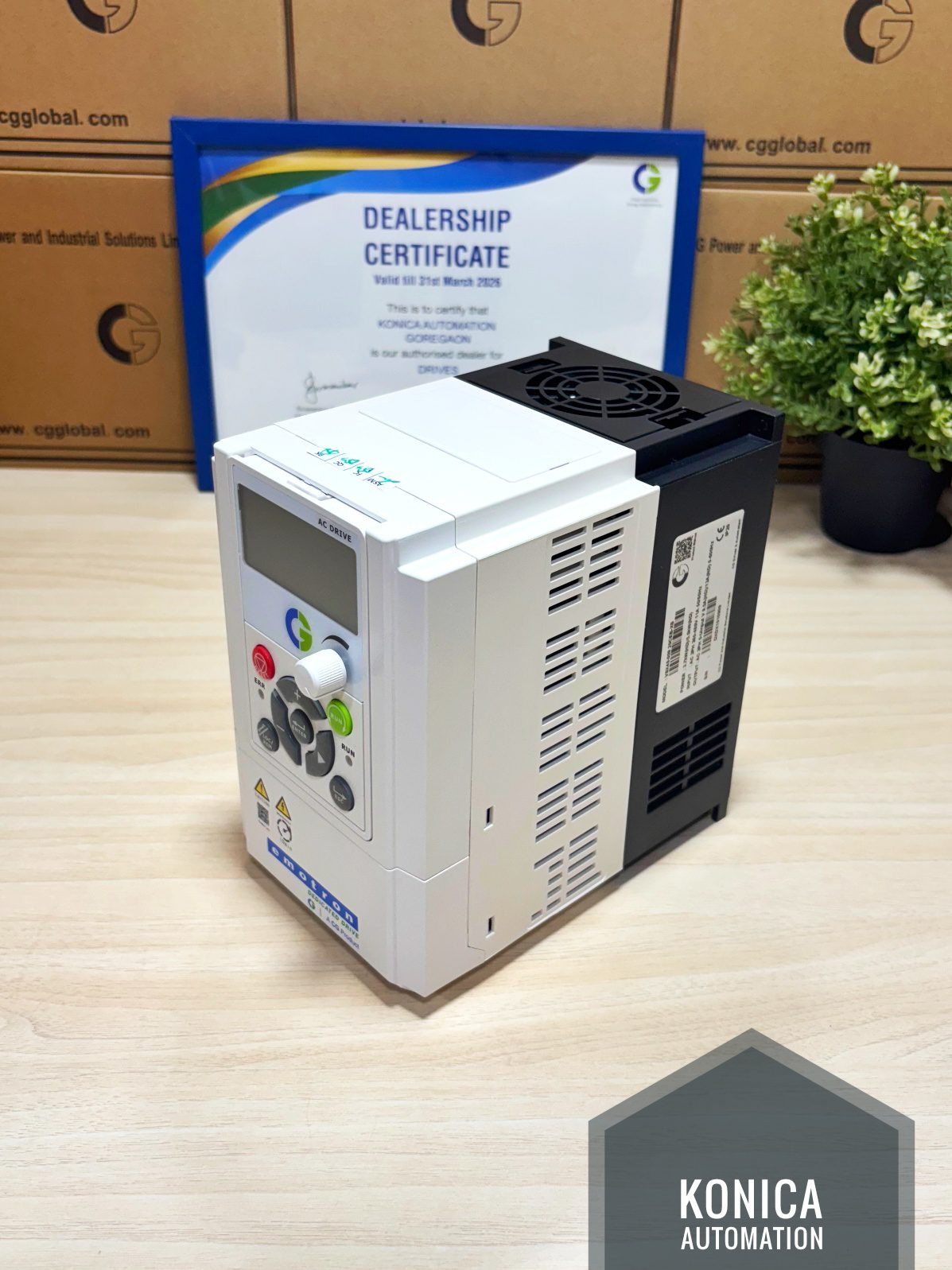

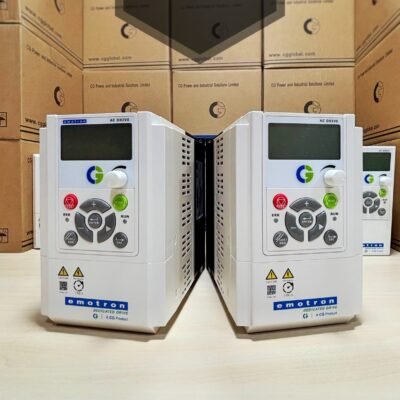

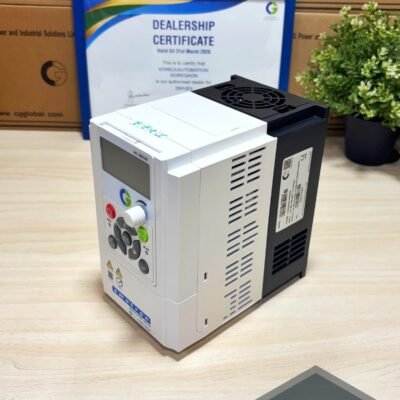

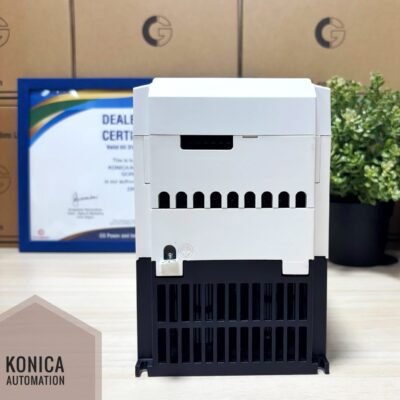

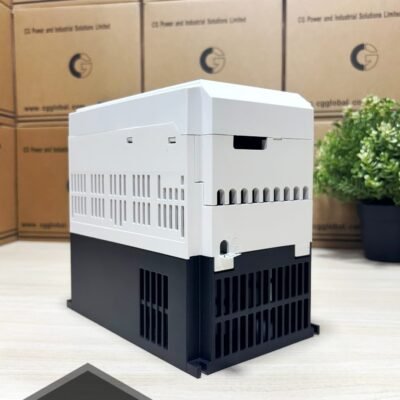

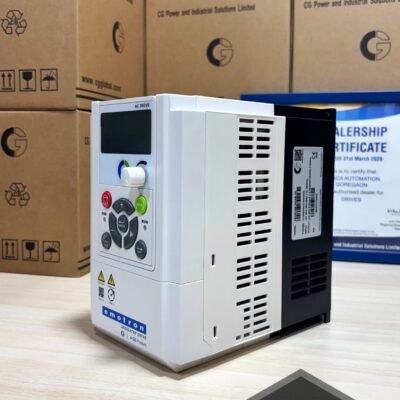

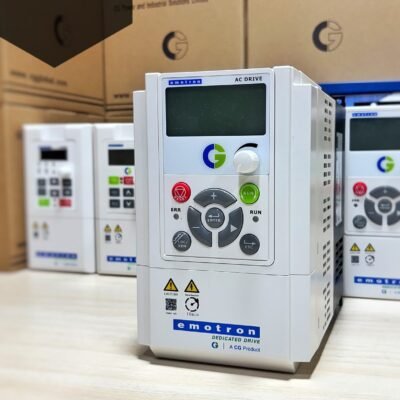

The CG Emotron VSR48-013-20CEB is a smart and durable Solar Variable Frequency Drive (VFD) tailored for efficient water pumping using solar energy. Designed to work with both Induction and Permanent Magnet motors, it optimizes performance with a self-adaptive MPPT algorithm, ensuring maximum water output even in fluctuating sunlight. With its intelligent protection features and dual AC/DC input, this solar VFD is ideal for agriculture, irrigation, and remote pumping needs. ☀️💧⚙️
🔧 Key Features:
🌞 Self-adaptive MPPT (Maximum Power Point Tracking) for maximum efficiency
🔄 Supports both AC & DC input for hybrid solar pumping systems
⚡ 200% overload capacity for 1 second
🌀 Compatible with Induction and PM motors
🧠 Built-in smart protection: dry-run, over-voltage, weak light sleep mode
🔧 Virtual I/Os, comparators, timers, and PLC functions integrated
📶 LED display for easy operation and monitoring
📦 Compact design with efficient cooling system
🔌 Plug-and-play setup with Emo Wizard for fast configuration
📡 Inbuilt C3-class EMC filter for noise suppression
✅ User Benefits:
🚀 Delivers high torque at startup – even under heavy load
🌦️ Works reliably in low sunlight and harsh environments
🧴 Conformal-coated PCBs for humid, dusty, and outdoor conditions
🔧 Easy installation reduces downtime and maintenance
💡 Maximizes water output with real-time solar tracking
🔋 Saves energy and boosts motor life with intelligent controls
📦 Technical Specifications:
🔹 Model: VSR48-013-20CEB
🔹 Power Rating: 5.5 kW (7.5 HP)
🔹 Rated Current: 13 Amps
🔹 Input Voltage: AC (380–480V 3-phase) / DC (up to 800V DC input)
🔹 MPPT Range: Typically 300–800V DC
🔹 Overload: 200% for 1 second
🔹 Weight: 2.5 kg
🔹 Display: LED
🔹 Cooling: Forced air cooling with isolated duct
🔹 EMC Filter: Built-in (C3 class)
🔹 Certification: CE Certified
🔄 Product Range – CG Emotron VSR Series:
⚙️ Power Range: 0.75 kW to 22 kW
⚡ Current Range: 2.5 A to 45 A
🔌 Voltage Input: AC 3-phase (380–480V) & DC (up to 800V)
🌀 Motor Compatibility: Induction Motor & Permanent Magnet Motor
✅ Applications: Solar water pumping, agriculture, irrigation, remote pumping
📜 Certified: CE
