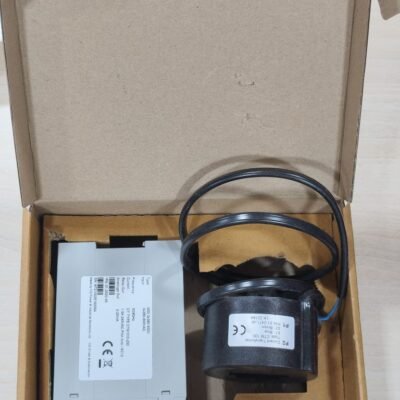

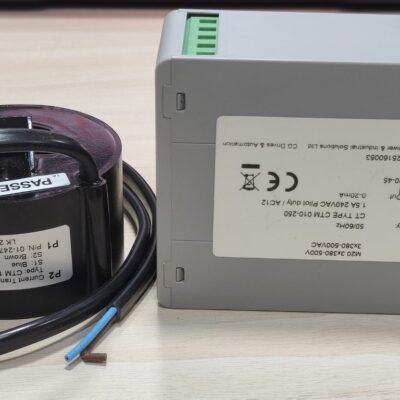

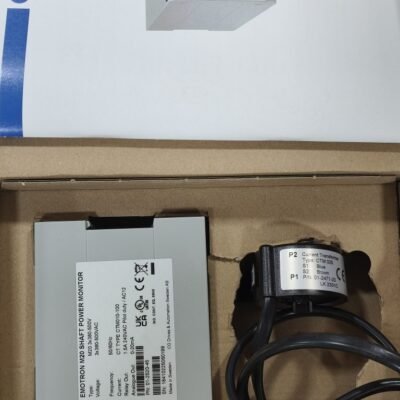

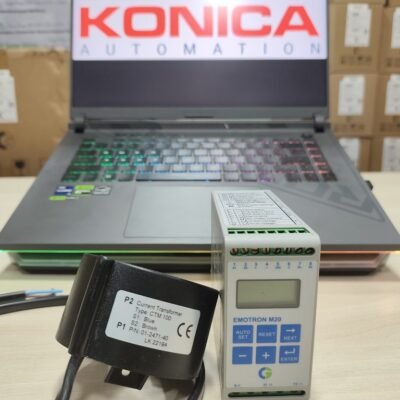

CG Emotron M20 Shaft Power Monitor with CTM050 ⚙️🔌 | Motor Load Monitoring up to 50A for Pumps, Mixers & Conveyors

The CG Emotron M20 Shaft Power Monitor with CTM050 is a robust, industrial-grade solution designed to detect early signs of equipment issues by monitoring motor shaft power output in real time. 💡 This intelligent device prevents costly failures due to dry-running, cavitation, overload, or mechanical blockages in motor-driven systems. 🛑🔧

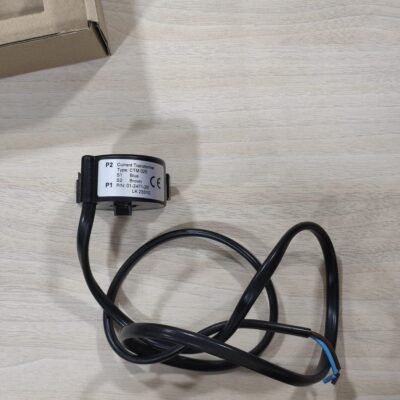

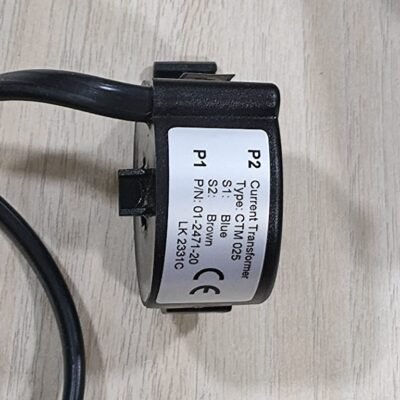

The CTM050 Current Transformer extends monitoring capability to motors drawing up to 50 Amps, making it perfect for medium-to-heavy-duty industrial machines like pumps, mixers, crushers, conveyors, and fans. 🌀📦

By using your motor as its own sensor, the M20 eliminates the need for external load sensors, minimizing installation costs while boosting accuracy and reliability.

🔧 Key Features:

✅ True shaft power monitoring (not just current sensing)
🧠 Auto-set feature configures all protection levels in 3 seconds

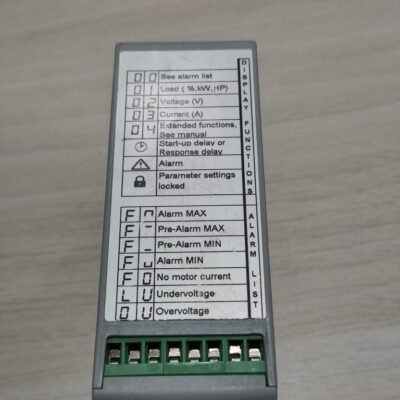

📊 LED display shows real-time load (% / kW / HP)
📈 Analog output (4–20 mA / 0–20 mA) for SCADA/PLC integration
🔌 2 Relay outputs for alarm and trip responses
🛠️ No external sensors required – compact and sensorless
🔧 DIN-rail mounting – simple, compact, and maintenance-free

📦 Technical Specifications:

• Model: Emotron M20 with CTM050

• Current Range: 0–50 A

• Supply Voltage:

  • 1×100–240 VAC

  • 3×100–240 / 380–500 / 525–690 VAC

• Frequency: 50 / 60 Hz

• Display: LED

• Output:

  • Analog: 0–20 mA / 4–20 mA (scalable)

  • Relay: 2 programmable outputs

• Protection: IP20

• Mounting: DIN rail 35 mm

• Certifications: CE, UL, cUL

🚀 Applications:

💧 Pumps – Prevent dry-run, blocked impellers, and cavitation
🔄 Mixers – Detect changes in viscosity or blade faults
📦 Conveyors – Monitor material flow, detect jamming or idling
🔩 Crushers / Fans – Detect abnormal shaft load variations
